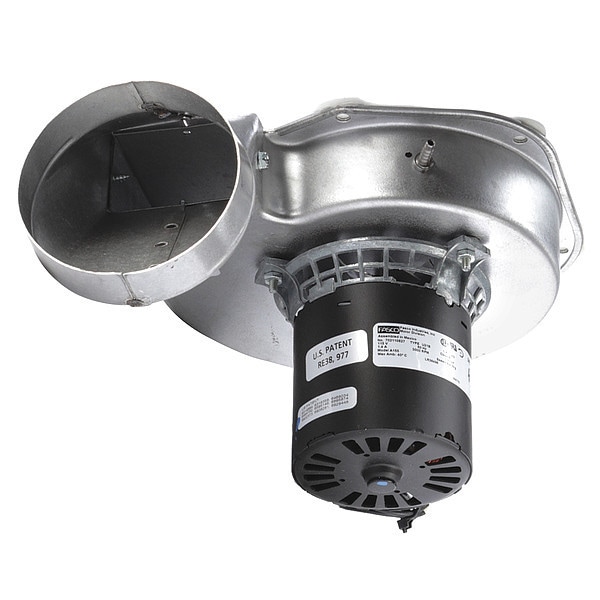

Fasco Draft Inducer Blower, 115, Steel, 6 5/32 in W, 8 1/2 in H, 4.9/3.85" Inlet and Outlet Dia. A155 - main
Shop FASCO

Draft Inducer Blower, 115, Steel, 6 5/32 in W, 8 1/2 in H, 4.9/3.85" Inlet and Outlet Dia.

  • Mfr # A155

  • Zoro # G8518772

product price:  $226.99
/ea
Free Shipping & Returns

Key Features

Inlet and Outlet Dia. (In.)
4.9/3.85"
Type
Replacement
Voltage
115
Depth (In.)
10 13/16 in
Construction Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A155
Zoro #
G8518772
UPC #
663001021407
Country of Origin
Mexico

Dimensions

Inlet and Outlet Dia. (In.)
4.9/3.85"
Depth (In.)
10 13/16 in
Height (In.)
8 1/2 in
Vent Pipe Dia. (In.)
3.3"
Width (In.)
6 5/32 in
Inlet Diameter
4 7/8 in
Outlet Diameter
3 3/4 in
Overall Height
8 1/2 in
Wheel Diameter
4 5/8 in
Overall Width
6 1/8 in
Overall Depth
10 3/4 in

Details

Item
Draft Inducer Blower
Type
Replacement
Voltage
115
Construction Material
Steel
Amps
1.4A
For Use With Mfr. Model Number
7021-10046
Fits Brand
Armstrong
Replaces
Alltemp (Rotom) FB-RFB425, Armstrong 40425-003, 40425-002, Fasco 702110046, 702110325, 702111062
Agency Compliance
CSA Motor Only, UL
Application
Furnaces
Number of Speeds
1
RPM
3000
Bearings
Ball
Enclosure
Open
Class
B
Overload Protection
Thermal
CFM @ 1.40-In. SP
55
CFM @ 0.500-In. SP
87
CFM @ 1.000-In. SP
74
CFM @ 0.700-In. SP
85
CFM @ 0.000-In. SP
97
Motor Type
Shaded Pole
Maximum Inlet Air Temperature
40 Degrees C
Blower Type
Induced Draft Blower
Replacement For Manufacturer Model Number
40425-002, 40425-003, 702110046, 702110325, 702111062, FB-RFB425
Maximum Motor Speed
3,000 RPM
Current
1.4 A
Standards
CSA Certified, UL Listed
Compatible with Brand
Armstrong
Includes Motor
Yes
For Appliance Type
Furnaces
Phase
1
Airflow @ 0.000 in SP
87 cfm
Motor Insulation Class
B
Frequency
60 Hz
Maximum Fan Speed
3,400 RPM
OEM Replacement
Yes
Outlet Shape
Round
Electrical Connection
Wire Leads
Maximum Static Pressure
2 1/8 in wc
Housing Material
Steel
Wheel Material
Steel
Wheel Type
Forward-Curved
For Use With
7021-10046, Armstrong
Nameplate Voltage
115V AC

Description

Draft Inducer, Application Furnaces, For Appliance Type Furnaces, Inlet Diameter 4 7/8 in, Outlet Diameter 3 3/4 in, Compatible with Brand Armstrong, Replacement For Manufacturer Model Number 40425-002, 40425-003, 702110046, 702110325, 702111062, FB-RFB425, Nameplate Voltage 115V AC, Phase 1, Current 1.4 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM, Maximum Motor Speed 3,000 RPM
