Shop FASCO

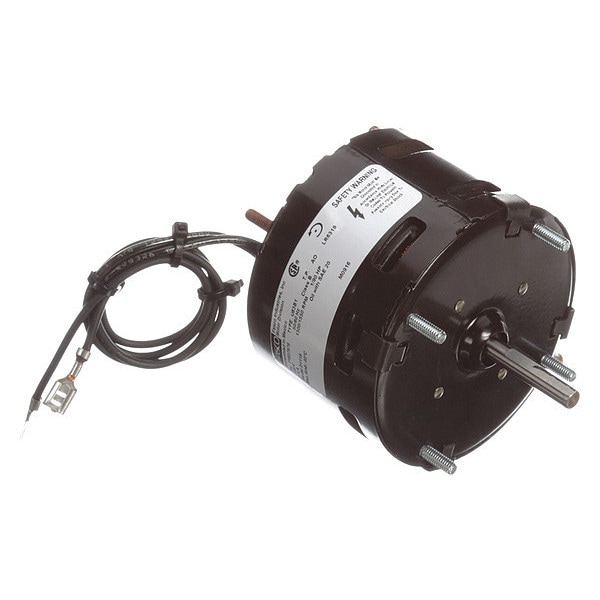

HVAC 3.3 In Motor, 1/90 HP, 240V, CCW

  • Mfr # D1119

  • Zoro # G5801083

product price:
$
87.29
/ea

Key Features

Voltage
240V AC
Nameplate RPM
1,300
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/90
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1119
Zoro #
G5801083
UPC #
815585028352
Country of Origin
Mexico

Dimensions

Length Less Shaft
2 13/16 in
Shaft Length
1 1/2 in
Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Overall Length
4 1/8 in
Stud Size
#8-32
Lead Length
12 in
Bolt Circle Dia.
2 7/8 in
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
1/4 in
Frame Size
3.3
Mounting Stud Thread Size
#8-32
Body Diameter
3.3 in
Wire Rope Length
4 1/8 in
Length
4 1/8 in

Details

Voltage
240V AC
Nameplate RPM
1,300
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/90
RPM Range
1,201-1,300
Application
HVAC/R
Motor Shaft Rotation
CCWSE
Motor Sub Application
OEM Replacement
Mounting Stud Location
4/Both Ends
Item
OEM Replacement Motor
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Standards
CSA Certified
Motor Shaft Design
Flat
Full Load Amps
0.4 A
Motor Application
HVAC/R
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
No. of Speeds
1
Duty
Continuous
Motor Thermal Protection
Auto
Ins. Class
B
Motor Design
Shaded Pole
Number of Shafts
1
Mounting Pattern
2-7/8 x 2-7/8
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Service Factor
1
Motor Bearings
Sleeve
Frame
3.3
Motor Mounting Type
Ring/Stud
Phase
Single
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Weight
2 lb
Mounting Holes
(8) #8-32
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1,550 RPM
Mounting
Stud
Nameplate Service Factor @ 60 Hz
1
Wattage
10 W
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Sub Application
General Purpose
Nameplate RPM @ 50 Hz
1,550 RPM
Drive Type
Direct Drive
Product Type
OEM Replacement Motor
Bearing Type
Sleeve
Insulation Class
B
Full Load Current @ 60 Hz
0.4 A
Frame Material
Steel
Frequency
60 Hz
Motor Enclosure Type
Open Air Over

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/90 hp HP, Nameplate RPM 1,300 RPM, No. of Speeds 1, Voltage 240V AC, 0.4 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
