  11. HVAC Motor, 1/15 HP, 1550 rpm, 115V, 3.3
Shop All 3.3 Inch Diameter Motors
Dayton

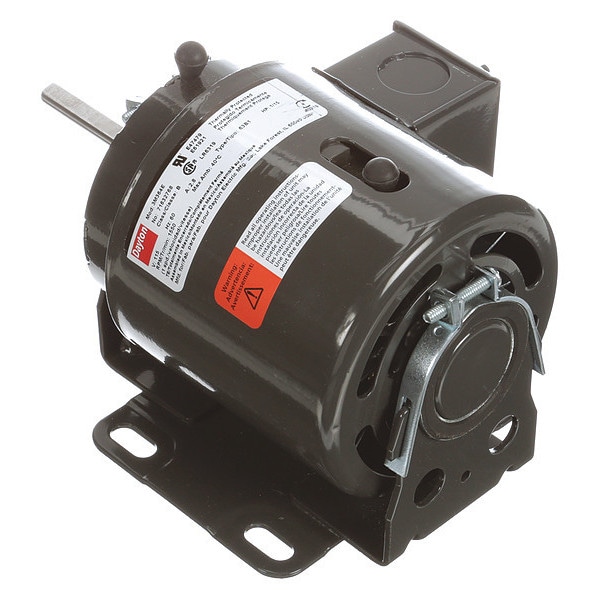

HVAC Motor, 1/15 HP, 1550 rpm, 115V, 3.3

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Voltage: 115V AC
  • Nameplate RPM: 1,550 RPM
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Number of Speeds: 1
  • HP: 1/15
  • RPM Range: 1,501-1,600
  • Motor Design: Shaded Pole
  • Duty: Continuous
See full product details
$137.39
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Dayton #71632768M Specifications

  • Voltage: 115V AC
  • Nameplate RPM: 1,550 RPM
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Number of Speeds: 1
  • HP: 1/15
  • RPM Range: 1,501-1,600
  • Motor Design: Shaded Pole
  • Duty: Continuous
  • Motor Mounting Type: Cradle Base
  • Motor Shaft Rotation: CWSE
  • Item: HVAC Motor
  • Motor Shaft Design: Flat
  • Shaft Length: 2 in
  • Motor Application: HVAC/R
  • No. of Speeds: 1
  • Hz: 60 Hz
  • Number of Shafts: 1
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Stud/Base Mtg. Pattern: 3-3/4 in x 2-3/4 in
  • Phase: Single
  • Cord Length: 12 in
  • Body Dia.: 4 in
  • Motor Service Factor: 1
  • Full Load Amps: 2.3
  • Shaft Dia.: 5/16 in
  • Frame: 3.3
  • Motor Thermal Protection: Auto
  • Motor Sub Application: Direct Drive Fan/Blower
  • Motor Bearings: Sleeve
  • Standards: CSA Certified, UL Recognized
  • Ins. Class: B
  • Max. Ambient Temp.: 40 Degrees C
  • Application: OEM and Replacement Use In A Wide Variety of Fan and Blower
  • Length Less Shaft: 5 1/2 in
  • Capacitor Required: No
  • Usable @ 208V: No
  • Mounting Stud Pattern: 3 3/4 in x 2 3/8 in
  • Usable @ 200V: No
  • Motor Mounting Position: All Angle
  • Duty Cycle: Continuous
  • Type: OEM Replacement
  • Mounting: Cradle Base
  • Country of Origin (subject to change): Mexico

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2.3, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Number of Shafts 1
