Shop All 3.3 Inch Diameter Motors
Fasco

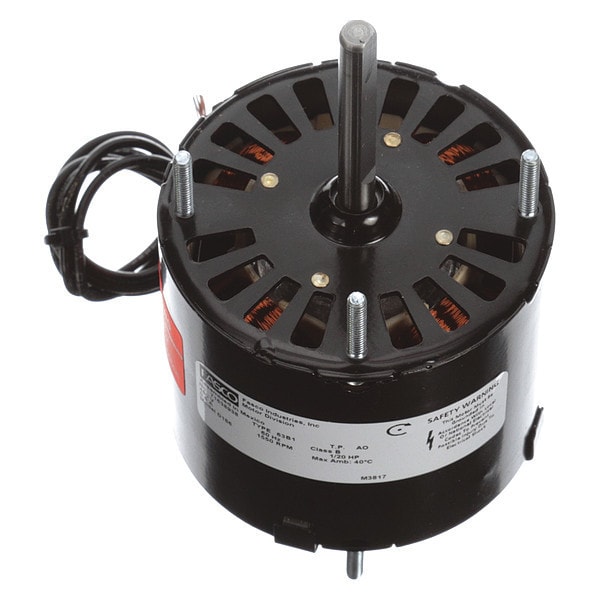

HVAC Motor, 1/20 HP, 1550 rpm, 460V, 3.3

original price: $130.10
5% off
new price: $122.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 460V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/20
See all product information

Product Information

Dimensions

Shaft Dia. 5/16 in
Shaft Length 2 1/4 in
Body Dia. 3 5/16 in
Length Less Shaft 3 5/16 in
Bolt Circle Dia. 2 7/8 in
Stud Size #8-32
Overall Length 5 7/16 in
Lead Length 12 in

Details

Voltage 460V AC
Nameplate RPM 1,550
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/20
RPM Range 1,501-1,600
Application HVAC/R
Phase Single
Mounting Pattern 2-7/8 x 2-7/8
Stud/Base Mtg. Pattern 2-7/8 in x 2-7/8 in
Number of Shafts 1
Item OEM Replacement Motor
Hz 60 Hz
Motor Bearings Sleeve
Motor Thermal Protection Auto
Mounting Stud Location 4/Both Ends
Full Load Amps 0.5 A
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Motor Sub Application OEM Replacement
Duty Continuous
Motor Design Shaded Pole
Motor Shaft Rotation CWSE
Frame 3.3
Motor Mounting Type Stud
Motor Application HVAC/R
No. of Speeds 1
Ins. Class B
Motor Shaft Design Flat
Motor Service Factor 1
Standards UL Recognized (E46205)
Max. Ambient Temp. 40 Degrees C
Capacitor Required No
Motor Frame Material Steel
Motor Mounting Position All Angle
Mounting Holes (8) #8-32
Usable @ 200V No
Usable @ 208V No
Mounting Stud Pattern 2 7/8 in x 2 7/8 in
Weight 3 lb
Mounting Stud

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 460V AC, Full Load Amps 0.5 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
