Fasco

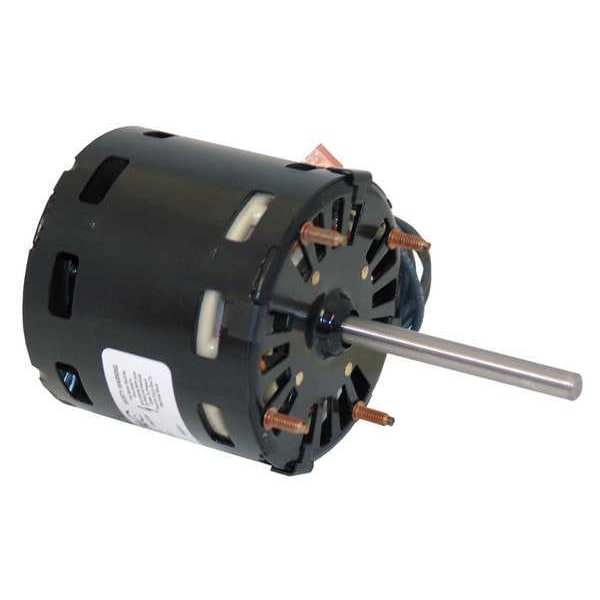

HVAC Motor, 1/15 HP, 1600 rpm, 120V, 3.3
- Zoro #: G5229472
- Mfr #: D109
Hover or click to zoom Tap to zoom
Help us improve our
product images
Key Features
- Voltage: 120V AC
- Nameplate RPM: 1,600 RPM
- Motor Enclosure Design: Open Air-Over
- Number of Speeds: 1
- HP: 1/15
- RPM Range: 1,501-1,600
- Motor Application: HVAC/R
- Shaft Length: 3 in
$100.75
Ships from United States
Subtotal: $100.75
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Fasco #D109 Specifications
- Zoro #: G5229472
- Mfr #: D109
- UPC #: 815585028055
- Voltage: 120V AC
- Nameplate RPM: 1,600 RPM
- Motor Enclosure Design: Open Air-Over
- Number of Speeds: 1
- HP: 1/15
- RPM Range: 1,501-1,600
- Motor Application: HVAC/R
- Shaft Length: 3 in
- Full Load Amps: 2.00
- Motor Bearings: Sleeve
- Motor Service Factor: 1
- Motor Shaft Rotation: CWSE
- Shaft Dia.: 5/16 in
- Item: Direct Drive Blower Motor
- Duty: Continuous
- Mounting Stud Location: 4/Shaft End
- Max. Ambient Temp.: 40 Degrees C
- Body Dia.: 3 5/16 in
- Motor Shaft Design: Flat
- Ins. Class: B
- Motor Design: Shaded Pole
- Stud/Base Mtg. Pattern: 2-7/8 in x 2-7/8 in
- Number of Shafts: 1
- Length Less Shaft: 3 9/16 in
- Standards: CSA Certified, UL Recognized
- Motor Thermal Protection: Auto
- Motor Mounting Type: Stud
- Motor Sub Application: Direct Drive Fan/Blower
- Phase: Single
- Frame: 3.3
- Hz: 60 Hz
- Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
- Application: HVAC/R
- No. of Speeds: 1
- Mounting Pattern: 2-7/8 x 2-7/8
- Capacitor Required: No
- Overall Length: 6 15/16 in
- Stud Size: #8-32
- Mounting Holes: (4) #8-32
- Usable @ 208V: No
- Mounting Stud Pattern: 2 7/8 in x 2 7/8 in
- Lead Length: 12 in, 16 in
- Motor Frame Material: Steel
- Usable @ 200V: No
- Weight: 4 lb
- Bolt Circle Dia.: 2 7/8 in
- Motor Mounting Position: All Angle
- Mounting: Stud
- Country of Origin (subject to change): Mexico
Description
Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,600, No. of Speeds 1, Voltage 120V AC, Full Load Amps 2.00, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, 16 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
