  11. HVAC Motor, 1/60 HP, 3000 rpm, 115V, 3.3

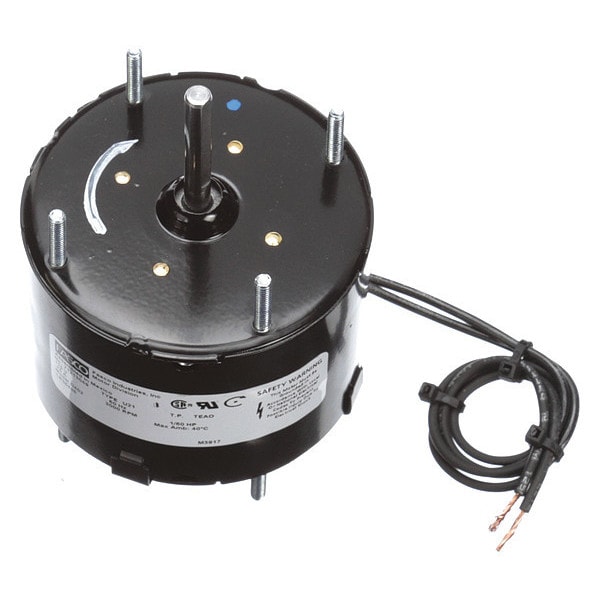

Fasco HVAC Motor, 1/60 HP, 3000 rpm, 115V, 3.3 D402 - main

HVAC Motor, 1/60 HP, 3000 rpm, 115V, 3.3

  • Mfr # D402

  • Zoro # G5301615

product price: $90.39
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed
Number of Speeds
1
HP
1/60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D402
Zoro #
G5301615
UPC #
815585029847
Country of Origin
Mexico

Dimensions

Shaft Length
1 3/4 in
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Length Less Shaft
2 11/16 in
Overall Length
4 7/16 in
Lead Length
11 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed
Number of Speeds
1
HP
1/60
RPM Range
1,801-3,000
Ins. Class
B
Duty
Continuous
Frame
3.3
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Motor Shaft Rotation
CWSE
Motor Bearings
Sleeve
Motor Shaft Design
Flat
Phase
Single
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Location
4/Both Ends
Mounting Pattern
2-7/8 x 2-7/8
Motor Design
Shaded Pole
Motor Mounting Type
Ring/Stud
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Application
HVAC/R
Item
Direct Drive Blower Motor
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Number of Shafts
1
Motor Service Factor
1
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
Max. Ambient Temp.
40 Degrees C
Full Load Amps
0.75 A
Capacitor Required
No
Usable @ 200V
No
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 208V
No
Motor Frame Material
Steel
Weight
2 lb
Motor Mounting Position
All Angle
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/60 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.75 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Stud, Motor Frame Material Steel
