Fasco

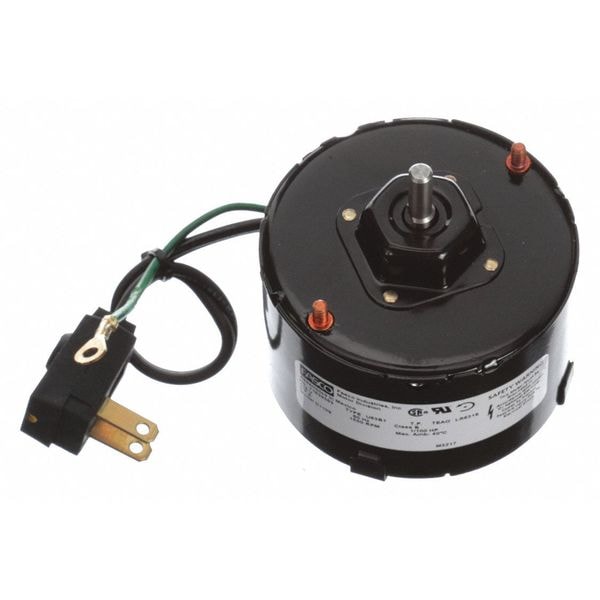

HVAC Motor, TEAO, 1/100 HP, 1550 rpm, Sleeve

original price: $79.66
4% off
new price: $75.75
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Totally Enclosed Air-Over
  • Number of Speeds 1
  • HP 1/100
See all product information

Product Information

Dimensions

Shaft Dia. 1/4 in
Length Less Shaft 3 1/16 in
Body Dia. 3 5/16 in
Cord Length 8 in
Shaft Length 1 1/4 in
Overall Length 3 7/8 in
Stud Size #8-32
Lead Length 7 in
Bolt Circle Dia. 2 7/8 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Totally Enclosed Air-Over
Number of Speeds 1
HP 1/100
RPM Range 1,501-1,600
Duty Continuous
Full Load Amps 0.7 A
Phase Single
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Frame 3.3
Standards CSA Certified, UL Recognized
Hz 60 Hz
Motor Bearings Sleeve
Motor Mounting Type Stud
Stud/Base Mtg. Pattern 2-27/32 in x 180 Degrees
Motor Service Factor 1
Max. Ambient Temp. 40 Degrees C
Motor Application HVAC/R
Mounting Stud Location 2/Both Ends
Item OEM Replacement Motor
Motor Shaft Design Flat
Ins. Class B
Motor Sub Application OEM Replacement
Motor Design Shaded Pole
No. of Speeds 1
Motor Thermal Protection Auto
Application General Application
Plug Type 2 Prong Non-Polarized
Number of Shafts 1
Motor Shaft Rotation CCWSE
Capacitor Required No
Mounting Holes (4) #8-32
Usable @ 200V No
Usable @ 208V No
Motor Frame Material Steel
Weight 2 lb
Conduit Box Position F1
Mounting Stud

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/100 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.7 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 7 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Number of Shafts 1
