  11. HVAC Motor, OAO, 1/20 HP, 1550 rpm, 115V
Shop All 3.3 Inch Diameter Motors
Fasco

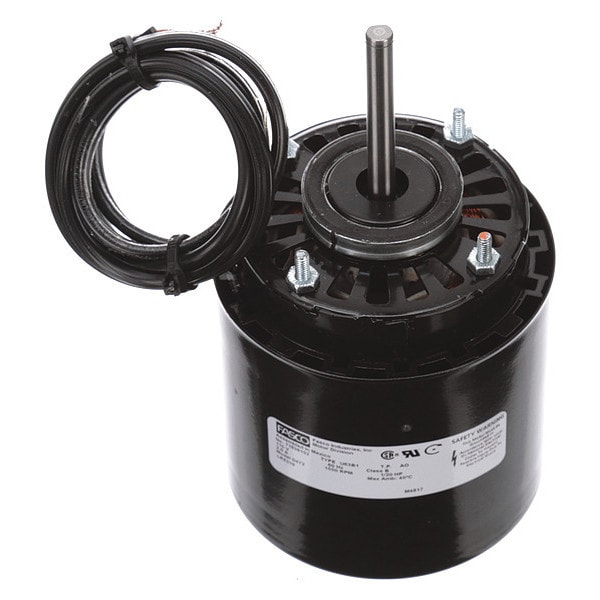

HVAC Motor, OAO, 1/20 HP, 1550 rpm, 115V

original price: $141.99
8% off
new price: $129.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/20
See all product information

Product Information

Dimensions

Shaft Length 2 5/8 in
Shaft Dia. 5/16 in
Cord Length 34 in
Body Dia. 3 5/16 in
Length Less Shaft 5 1/16 in
Lead Length 33 in
Bolt Circle Dia. 2 7/8 in
Stud Size #8-32
Overall Length 7 3/8 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/20
RPM Range 1,501-1,600
Item HVAC Motor
No. of Speeds 1
Motor Shaft Design Flat
Motor Design Shaded Pole
Motor Application HVAC/R
Standards CSA Certified, UL Recognized
Application General Application
Motor Mounting Type Stud
Mounting Stud Location 4/Shaft End
Motor Bearings Sleeve
Phase Single
Frame 3.3
Motor Sub Application Refrigerator/Freezer
Motor Service Factor 1
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Number of Shafts 1
Full Load Amps 2 A
Motor Shaft Rotation CWSE
Hz 60 Hz
Duty Continuous
Max. Ambient Temp. 40 Degrees C
Ins. Class B
Stud/Base Mtg. Pattern 2-27/32 in x 90 Degrees
Motor Thermal Protection Auto
Capacitor Required No
Mounting Holes (4) #8-32
Usable @ 208V No
Motor Frame Material Steel
Usable @ 200V No
Weight 4 lb
Mounting Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 33 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Number of Shafts 1
