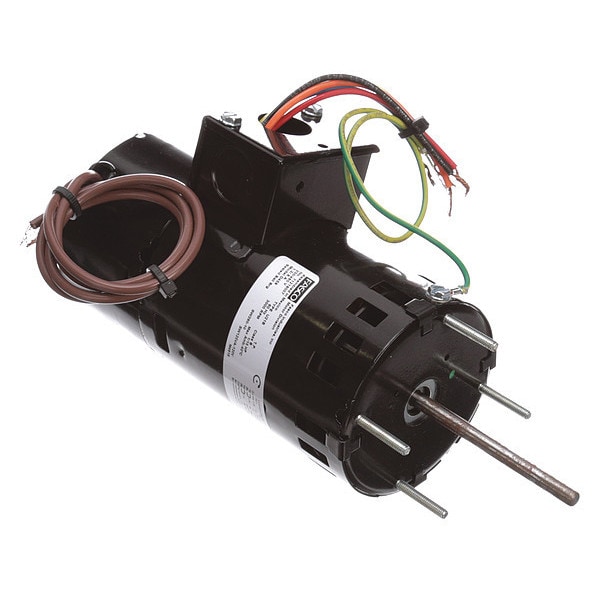

Motor, 1/15 HP, OEM Replacement Brand: Carrier/BDP Replacement For: AB1S029

  • Mfr # D459

  • Zoro # G4333948

product price:  $249.99
/ea
Additional $60.00 delivery surcharge applies per item.
See details

Key Features

Frame
3.3
HP
1/15 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D459
Zoro #
G4333948
UPC #
818508020044
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4"
Shaft Length
3 in
Length Less Shaft
6 7/8 in
Bolt Circle Dia.
2-13/16"
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr
Overall Length
10.2"
Stud Size
#8-32
Body Diameter
3.4 in
Bolt Circle Diameter
2 13/16 in
Wire Rope Length
10 3/16 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/4 in
Frame Size
3.3

Details

Frame
3.3
HP
1/15 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Clockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
3000 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier/BDP
Phase
1
RPM Range
1801-3000
Voltage
230/460V
Motor Bearings
Ball
Replacement For
AB1S029
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.2/0.60A
Capacitor Required
No
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4 in x 4 in
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Motor Frame Material
Steel
Weight
5 lb
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Conduit Box Position
F2
Number of Speeds
1
Compatible Manufacturer Part Number
AB1S029
Sub Application
Condenser Fan
Full Load Current @ 60 Hz
1.2/0.60 A
Product Type
Condenser Fan Motor
Motor Enclosure Type
Open Air Over
Bearing Type
Ball
Compatible Brand
Carrier/BDP
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Shaft Design
Flat
Insulation Class
B

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.2/0.60 A, 3.3 Frame, OEM Replacement Brand Carrier/BDP, Replacement For AB1S029, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
