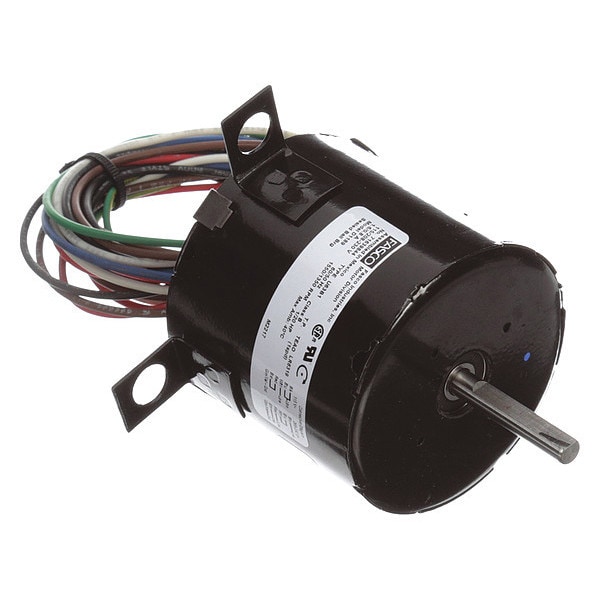

Motor, 1/20 HP, OEM Replacement Brand: Krack Refrigeration Replacement For: 11528

  • Mfr # D1189
  • Zoro # G4334191
product price:
$
165.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/20 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1189
Zoro #
G4334191
UPC #
815585028109
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16"
Shaft Length
1 5/8 in
Length Less Shaft
3 3/16 in
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr
Overall Length
4 7/8 in
Shaft Diameter
5/16 in
Wire Rope Length
4 7/8 in
Frame Size
3.3
Body Diameter
3.4 in
Length
4 7/8 in

Details

Frame
3.3
HP
1/20 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Lug
Motor Shaft Rotation
Clockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Auto
Nameplate RPM
1550/1350 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Krack Refrigeration
Phase
Single
RPM Range
1501-1600
Voltage
115V AC, 208V AC to 230V AC
Motor Bearings
Ball
Replacement For
11528
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.6/0.8A
Capacitor Required
No
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Flat
Hz
50/60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC, 208V AC to 230V AC, 208V AC to 240V AC, 208V AC, 230V AC, 240V AC
Weight
5 lb
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Number of Speeds
1
Compatible Manufacturer Part Number
11528
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B
Bearing Type
Ball
Compatible Brand
Krack Refrigeration
Shaft Design
Flat
Full Load Current @ 60 Hz
1.6/0.80 A
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 1.6/0.80 A, 3.3 Frame, OEM Replacement Brand Krack Refrigeration, Replacement For 11528, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over
