Shop FASCO

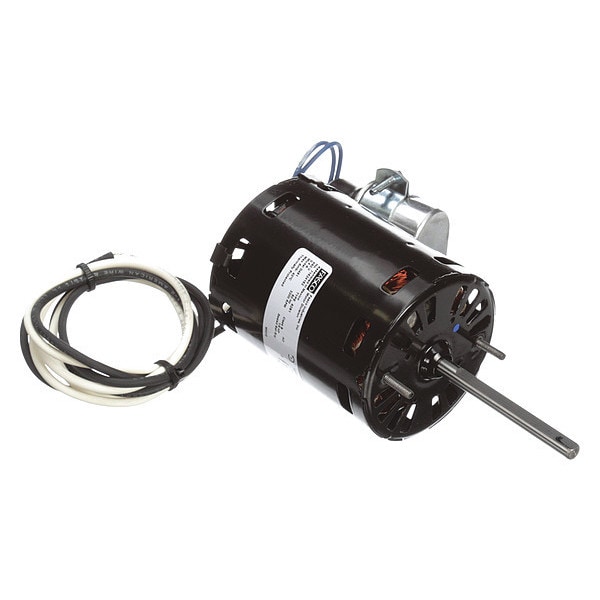

Motor, 1/8 HP, OEM Replacement Brand: Reznor Replacement For: 7162-0396

  • Mfr # D461

  • Zoro # G4333939

product price:
$
305.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/8 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D461
Zoro #
G4333939
UPC #
818508020051
Country of Origin
Mexico
Frame
3.3
HP
1/8 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Counterclockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
3200 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Reznor
Phase
1
RPM Range
3001-3600
Voltage
480V
Motor Bearings
Ball
Replacement For
7162-0396
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
0.4A
Capacitor Required
Included
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
2 in x 2 in
Voltage Compatibility
208-230/460V AC, 460V AC
Motor Frame Material
Steel
Weight
5 lb
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Compatible Brand
Reznor
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Insulation Class
B
Compatible Manufacturer Part Number
7162-0396
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Full Load Current @ 60 Hz
0.4 A
Bearing Type
Ball
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 3,200 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 0.4 A, 3.3 Frame, OEM Replacement Brand Reznor, Replacement For 7162-0396, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over
