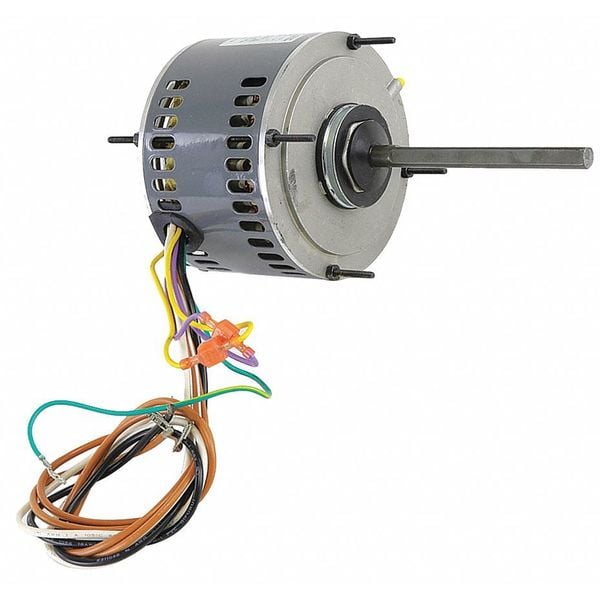

Motor, 208/230V AC, Single, 1/4 hp
Mfr # D783
Zoro # G2077831
product price: $262.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Fasco
Voltage
208/230V AC
Phase
Single
HP
1/4 hp
Standards
CSA Certified, UL Recognized
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
D783
Zoro #
G2077831
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
10 15/16 in
Length Less Shaft
4 in
Shaft Length
5 15/16 in
Shaft Dia.
1/2 in
Body Dia.
5.6 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.58 A, 48 Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud, Motor Frame Material Steel
