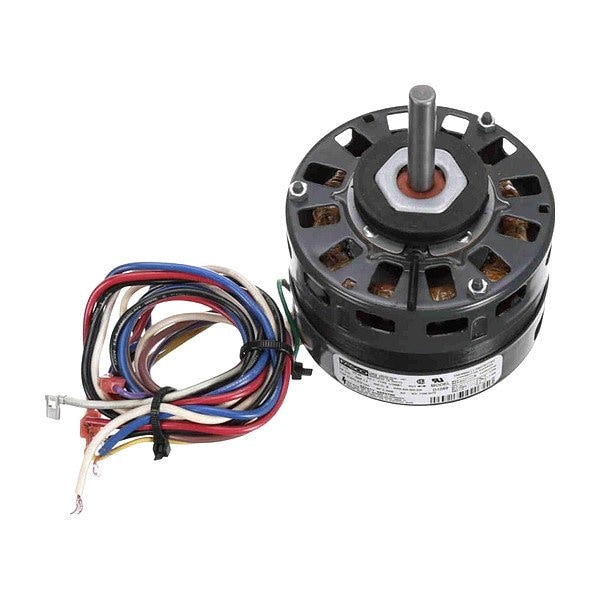

OEM Replacement Motor, 1/15, OEM Replacement Brand: Fasco

  • Mfr # D1089A

  • Zoro # G711934998

product price:  $236.99
/ea
Free Shipping & Returns

Key Features

Frame
42
HP
1/15
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1089A
Zoro #
G711934998
UPC #
818508029061
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 in
Length Less Shaft
4 1/16 in
Bolt Circle Dia.
4 5/8 in
Body Dia.
5 in
Overall Length
7 1/16 in
Frame Size
42
Shaft Diameter
1/2 in
Body Diameter
5 in
Bolt Circle Diameter
4 5/8 in
Wire Rope Length
7 1/16 in

Details

Frame
42
HP
1/15
Item
OEM Replacement Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Rings
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Blower Motor
Motor Thermal Protection
Auto
Nameplate RPM
850/620/520 RPM
No. of Speeds
3
OEM Replacement Brand
Fasco
Phase
Single
RPM Range
0-1,000
Voltage
115V AC
Motor Bearings
Sleeve
Replacement For
5KCP39DGM458AS, 7176-3020, D1089, K48HXCFC-1327, MOT3589, MOT3591
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Full Load Amps
1.3 A
Capacitor Required
Capacitor Not Included
Standards
CSA, UL
Motor Shaft Design
Flat
Motor Service Factor
1
Voltage Compatibility
115V AC
Duty Cycle
Continuous
Weight
8 lb
Motor Enclosure Type
Open Air Over
Compatible Brand
Fasco
Duty
Continuous
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Insulation Class
B
Number of Speeds
3
Bearing Type
Sleeve
Sub Application
Fan/Blower
Product Type
OEM Replacement Motor
Full Load Current @ 60 Hz
1.3 A

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp HP, Nameplate RPM 850/620/520 RPM, No. of Speeds 3, Voltage 115V AC, Full Load Amps 1.3 A, 42 Frame, OEM Replacement Brand Fasco, Replacement For 5KCP39DGM458AS, 7176-3020, D1089, K48HXCFC-1327, MOT3589, MOT3591, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
