  11. Motor, 1/65 HP, OEM Replacement Brand: Loren Cook Replacement For: 615049
Shop All OEM Replacement Motors
Fasco

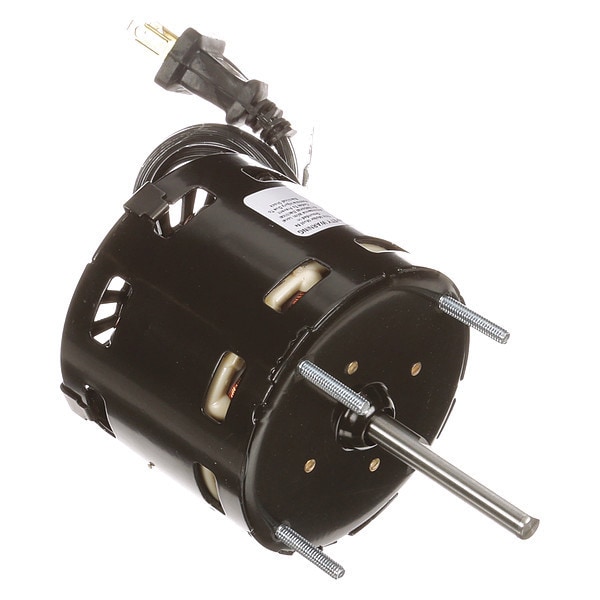

Motor, 1/65 HP, OEM Replacement Brand: Loren Cook Replacement For: 615049

product price: $99.95
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Frame 3.3
  • HP 1/65 HP
  • Motor Application OEM Replacement
  • Motor Design Shaded Pole
  • Motor Enclosure Design Open Air-Over
See all product information

Product Information

Dimensions

Shaft Dia. 0.313"
Shaft Length 2.3"
Length Less Shaft 3 1/16 in
Bolt Circle Dia. 2-13/16"
Body Dia. 3.3"
Manufacturers Warranty Length 1 yr.
Overall Length 5.37"
Stud Size #8-32

Details

Frame 3.3
HP 1/65 HP
Item Motor
Motor Application OEM Replacement
Motor Design Shaded Pole
Motor Enclosure Design Open Air-Over
Motor Mounting Type Extended Studs
Motor Shaft Rotation Clockwise Shaft End
Motor Sub Application Condenser Fan Motor
Motor Thermal Protection Automatic
Nameplate RPM 1590 rpm
No. of Speeds 1
Number of Shafts 1
OEM Replacement Brand Loren Cook
Phase 1
RPM Range 1501-1600
Voltage 115V
Motor Bearings Sleeve
Replacement For 615049
Ins. Class B
Max. Ambient Temp. 40 Degrees C
Duty Air Over
Full Load Amps 0.6A
Capacitor Required No
Standards UL Recognized, CSA Certified
Motor Shaft Design Flat
Hz 60 Hz
Motor Service Factor 1.00
Application Fans and Blowers
Mounting Stud Pattern 4" x 4"
Voltage Compatibility 115V AC, 120V AC
Motor Frame Material Steel
Usable @ 200V No
Weight 3 lb
Usable @ 208V No

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/65 HP, Nameplate RPM 1,590, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.6 A, 3.3 in Frame, OEM Replacement Brand Loren Cook, Replacement For 615049, Usable @ 208V No, Usable @ 200V No, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
