Shop FEDERAL SIGNAL

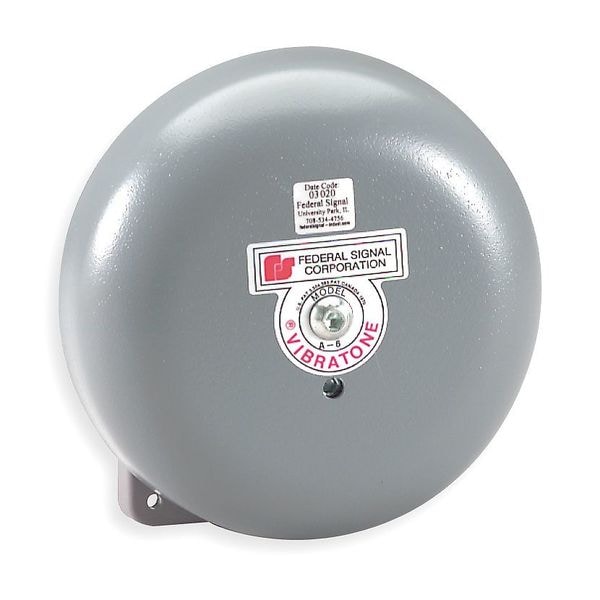

Bell, Bell, Continuous, 120V AC, 100 dB, Industrial Grade/Powder-Coat Paint, Gray, Outlet Box Mount

  • Mfr # 506-120-1

  • Zoro # G1629573

product price:
$
342.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Industrial Grade/Powder-Coat Paint
Mounting
Outlet Box
Amps
0.08 AC
Color
Gray
Audible Alarm Type
Bell
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
506-120-1
Zoro #
G1629573
UPC #
782979300151
Country of Origin
United States

Dimensions

Width
6 in
Height
6 in
Depth
2.625 in
Overall Depth
5 1/16 in
Overall Width
5 5/8 in
Overall Length
6 in
Overall Diameter
5 3/8 in
Wire Rope Length
6 in
Length
6 in

Details

Item
Bell
Housing Material
Industrial Grade/Powder-Coat Paint
Mounting
Outlet Box
Amps
0.08 AC
Color
Gray
Audible Alarm Type
Bell
Voltage
120V AC
Standards
CSA Certified, cUL Listed, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
100 dB
Sound Pattern
Continuous
Vibrating
Yes
Operating Temp.
-31 Degrees to 150 Degrees F
Visual Indicator Type
No Visual Indicator
Power Source
Wire
Features
Vibratone Gongs are Tempered to Produce Superior Output and Long-Lasting Durability
Product Type
Bell
Rating
NEMA 3R
Alarm Volume @ 10 ft - Maximum
100 dBA
Control Protocol
Direct Wire
Legend
Non applicable
For Location
Indoor, Outdoor
IP Rating
NEMA 3R
Sound Principle
Vibrating
Volume Selection
Fixed Volume
Vibration
Vibrating
Sound Continuity
Continuous
Operating Temperature - Minimum
-31 Degrees F
Alarm Volume @ 1 m - Maximum
110 dBA
Operating Temperature - Maximum
150 Degrees F
Sound Style
Bell
Operating Current
0.080 A
NEMA Rating
NEMA 3R
Operating Voltage
120V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

FEDERAL SIGNAL 506-120-1 is a direct-wire vibrating bell for audible signaling in indoor and outdoor locations. It operates on 120V AC and produces a continuous bell sound rated at 100 dB, with maximum sound levels of 110 dBA at 1 m and 100 dBA at 10 ft. The gray unit mounts to an outlet box and includes tempered Vibratone gongs for audible signaling.

Key Features:

  • Audible alarm type: Bell with continuous sound pattern
  • Sound output: 100 dB; maximum 110 dBA at 1 m and 100 dBA at 10 ft
  • Operating voltage: 120V AC
  • Current draw: 0.08 AC; operating current 0.080 A
  • Mounting: Outlet box mount
  • Power source and control: Direct wire
  • Use location: Indoor and outdoor
  • Rating: NEMA 3R
  • Visual indicator type: None
  • Operating temperature range: -31 to 150 degrees F
  • Overall size: 5 3/8 in. diameter, 5 1/16 in. overall depth, 5 5/8 in. overall width, 6 in. overall length/height
  • Standards: CSA Certified, cUL Listed, UL Listed
  • Color: Gray
