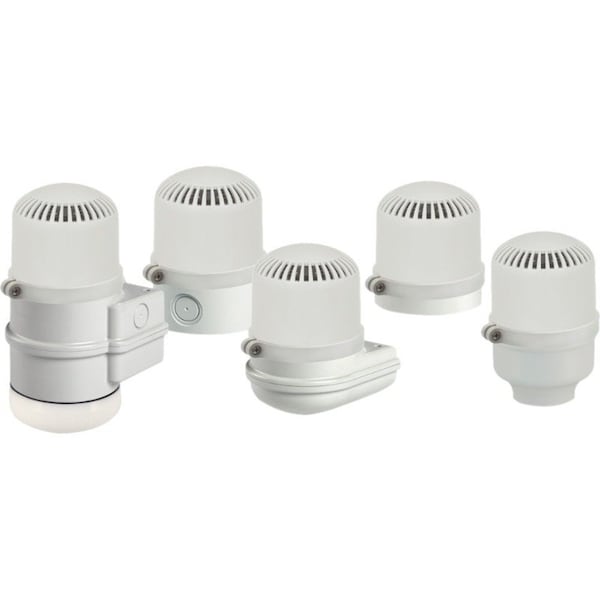

Electronic Sounder, Siren, Continuous, 12 to 24V AC/DC, 120 to 240V AC, 55 to 105dB, 65 to 115dB

  • Mfr # SLM800GY
  • Zoro # G3345470
product price:
$
217.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polycarbonate
Mounting
Conduit, Surface
Amps
35 to 240mA
Diameter
3.9063 in
Audible Alarm Type
Siren
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SLM800GY
Zoro #
G3345470
UPC #
782979233268
Country of Origin
Italy

Dimensions

Diameter
3.9063 in
Height
3.4375 in
Width
3.9063 in
Depth
3.9063 in
Overall Depth
3 7/16 in
Overall Diameter
3 7/8 in
Fits Chest Size
High Impact and UV Resistance

Details

Item
Electronic Sounder
Housing Material
Polycarbonate
Mounting
Conduit, Surface
Amps
35 to 240mA
Color
Gray
Audible Alarm Type
Siren
Voltage
12V AC to 24V AC, 12V DC to 24V DC, 120V AC to 240V AC
Standards
CE, cUL Listed, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
55 to 105dB, 65 to 115dB
Sound Pattern
Continuous
Includes
Top Module
Lens Color
Gray
Housing Color
Gray
Vibrating
No
Visual Indicator Type
No Visual Indicator
Operating Temp.
-22 Degrees to 122 Degrees F
Current Drawn
35 to 240mA
Alarm Type
Audible
Features
High Impact and UV Resistance
Product Type
Sounder Module
Rating
IP 65, NEMA 3R
Material
Polycarbonate
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Mounting Style
Surface Mount
Operating Temperature - Maximum
131 Degrees F
Alarm Volume @ 10 ft - Minimum
89 dBA
For Location
Outdoor
Sound Continuity
Continuous
Vibration
No Vibration
Number of Sound Patterns
64
Operating Current
200 A @ 240V AC, 270 A @ 24DC, 300 A @ 120V AC, 330 A @ 12V DC, 700 A @ 24V AC, 800 A @ 12V AC
Volume Selection
Selectable Volume
Alarm Volume @ 1 m - Maximum
111 dBA
Alarm Volume @ 1 m - Minimum
99 dBA
Alarm Volume @ 10 ft - Maximum
105 dBA
Sound Style
Siren
NEMA Rating
NEMA 3R
Operating Voltage
12 to 24V AC/DC, 120 to 240V AC
Shell Material
Polycarbonate
Wire Color
Gray

Description

FEDERAL SIGNAL SLM800GY is an electronic sounder module that features a continuous siren alarm for audible signaling. It is rated IP65 and NEMA 3R, with surface or conduit mounting options, selectable volume, and 64 sound patterns. The unit has a gray polycarbonate housing.

Key Features:

  • Alarm type: Audible siren with continuous sound pattern
  • Sound output: 55 to 105 dB, 65 to 115 dB; 99 to 111 dBA at 1 m; 89 to 105 dBA at 10 ft
  • Voltage: 12 to 24V AC/DC, 120 to 240V AC
  • Current draw: 35 to 240 mA
  • Mounting: Surface or conduit mounting configuration
  • Construction: Gray polycarbonate housing and lens
  • Protection ratings: IP65 and NEMA 3R
  • Temperature range: -22°F to 122°F
  • Standards: CE, cUL Listed, UL Listed
  • Visual indicator type: No visual indicator
  • Includes: Top module
