  6. Low Profile Mini Sounder, Siren, Continuous, 9 to 28V DC, 82 to 100dB, ABS Plastic, White

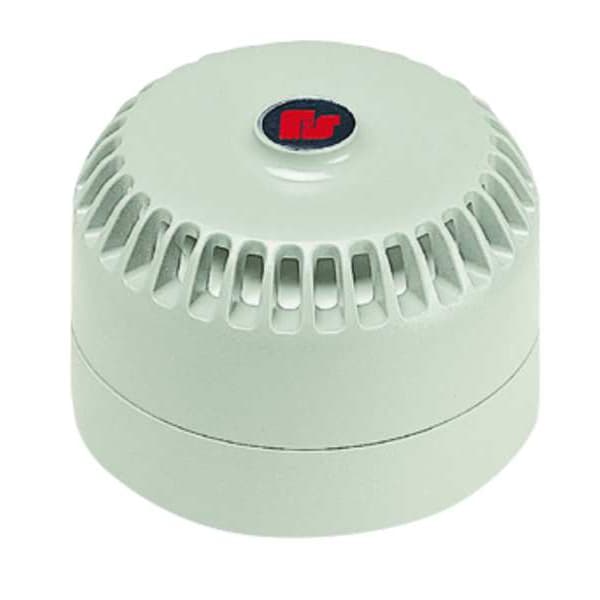

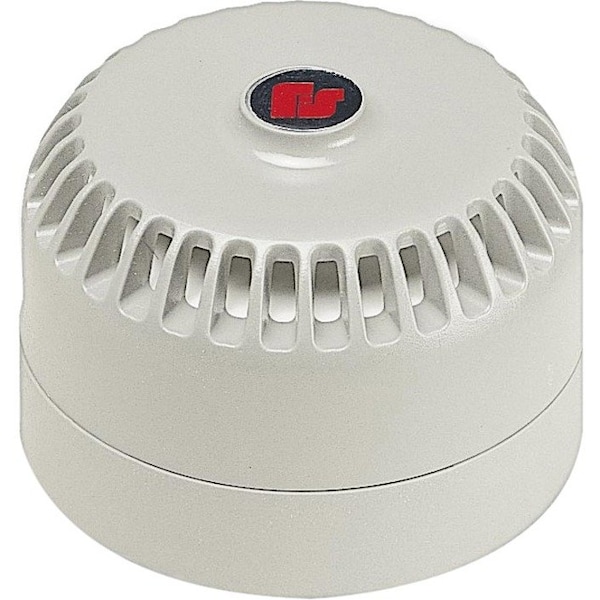

Federal Signal Low Profile Mini Sounder, Siren, Continuous, 9 to 28V DC, 82 to 100dB, ABS Plastic, White LP4-09-028 - main

Low Profile Mini Sounder, Siren, Continuous, 9 to 28V DC, 82 to 100dB, ABS Plastic, White

  • Mfr # LP4-09-028

  • Zoro # G3086937

product price:  $79.59
/ea
Free Shipping & Returns

Key Features

Housing Material
ABS Plastic
Mounting
Surface
Amps
4 to 33mA
Diameter
3.625 in
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP4-09-028
Zoro #
G3086937
UPC #
782979203476
Country of Origin
United Kingdom

Dimensions

Diameter
3.625 in
Width
3.625 in
Depth
1.875 in
Height
3 in
Overall Depth
3 in
Overall Diameter
3 11/16 in

Details

Item
Low Profile Mini Sounder
Housing Material
ABS Plastic
Mounting
Surface
Amps
4 to 33mA
Color
White
Audible Alarm Type
Siren
Voltage
9 to 28V DC
Standards
CE, UKCA
Indoor/Outdoor
Indoor, Outdoor
Decibels
82 to 100dB
Sound Pattern
Continuous
Visual Indicator Type
No Visual Indicator
Operating Temp.
-13 Degrees to 158 Degrees F
Vibrating
No
Alarm Type
Audible
Power Source
Wire
Input Voltage
28 V DC
Features
PLC Compatible, Remote Activation upto Two Tones
Product Type
Horn
Material
ABS
Rating
NEMA 4X
Vibration
No Vibration
Mounting Style
Surface Mount
Sound Style
Siren
NEMA Rating
NEMA 4X
Sound Continuity
Continuous
Number of Sound Patterns
32
Operating Current
0.004 to 0.033 A
For Location
Indoor, Outdoor
Alarm Volume @ 10 ft - Minimum
82 dB
Alarm Volume @ 10 ft - Maximum
100 dB
IP Rating
IP54, IP65
Alarm Volume @ 1 m - Minimum
92 dB
Operating Temperature - Minimum
-13 Degrees F
Alarm Volume @ 1 m - Maximum
110 dB
Connection Type
Terminal Block
Operating Temperature - Maximum
158 Degrees F
Volume Selection
Selectable Volume
Operating Voltage
9 to 28V DC

Description

Audible Alarm Type Siren, Visual Indicator Type No Visual Indicator, Voltage 9 to 28V DC, Decibels 82 to 100dB, Sound Pattern Continuous, Indoor/Outdoor Indoor, Outdoor, Mounting Surface, Height 3 in, Width 3.625 in, Depth 1.875 in, Diameter 3.625 in, Vibrating No, Housing Material ABS Plastic, Rating NEMA 4X, Operating Temp. -13 Degrees to 158 Degrees F, Features PLC Compatible, Remote Activation upto Two Tones, Standards CE, UKCA, Amps 4 to 33mA, Color White, Low Profile Mini Sounder
