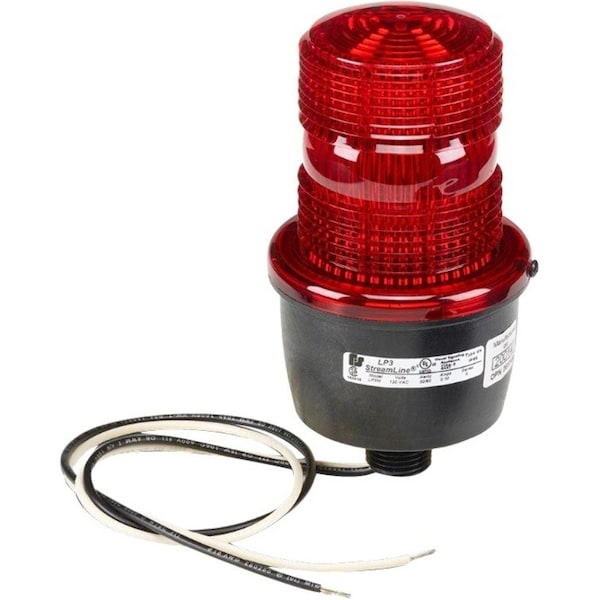

Federal Signal Low Profile Warning Light, Strobe, Red, LP3M-120R - main

Low Profile Warning Light, Strobe, Red,

  • Mfr # LP3M-120R

  • Zoro # G2372176

product price:  $148.99
/ea
Free Shipping & Returns

Key Features

Features
Conformal Coated PCBA
Lighting Technology
Strobe Tube
Light Color
Red
Standards
CE, CSA Certified, cUL Listed, UKCA, UL Listed
Lens Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LP3M-120R
Zoro #
G2372176
UPC #
782979207832
Country of Origin
United States

Dimensions

Overall Height
5-13/16 in
Lead Length
18 in
Overall Diameter
3 1/8 in
Footprint Diameter
3 1/8 in
Overall Depth
5 13/16 in

Details

Item
Warning Light
Features
Conformal Coated PCBA
Lighting Technology
Strobe Tube
Light Color
Red
Standards
CE, CSA Certified, cUL Listed, UKCA, UL Listed
Lens Color
Red
Electrical Connection
Wire Leads
Current
0.100 A @ 120V AC
Mount Style
Surface Mount
IP Rating
IP66, IP69K
Voltage
120V AC
Includes
Surface Gasket
Lens Material
Polycarbonate
Lens Design
Screw-on Dome
Rating
IP66, NEMA 4X
Flashes per Minute
80
Light Output
2.2 Joules
Housing Material
Polycarbonate
Mounting
(M) 1/2 in NPT w/Locknut
Power Source
Wire
Lamp Life
7,000 hrs
Housing Color
Black
Material
polycarbonate
Product Type
Strobe Light
Mounting Style
Surface Mount
NEMA Rating
NEMA 4X
Connection Type
Wire Leads
Footprint Shape
Circle
Light Intensity
175,000 cd
Mounting Mechanism
1/2 in MNPT
Lens Shape
Dome
Operating Current
0.100 A @ 120V AC
Operating Temperature - Maximum
150 Degrees F
Light Operating Mode
Strobe
Control Protocol
Direct Wire
Brightness Selection
Fixed Brightness
Includes Mounting Hardware
Mounting Hardware Included
Operating Temperature - Minimum
-31 Degrees F
Lifespan
4,000 hr
Requires Base
Base Not Required
Minimum Operating Temperature
-31 Degrees F
Mount Type
1, 2 in MNPT
Maximum Operating Temperature
150 Degrees F

Description

Warning Light, Color Red, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 2.2 Joules, Lamp Life 7,000 hr, Lens Design Screw-on Dome, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting (M) 1/2 in NPT w/Locknut, Operating Temp. -31 Degrees to 150 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 0.10A AC, Height 5 13/16 in, Voltage 120V AC
