Shop FEDERAL SIGNAL

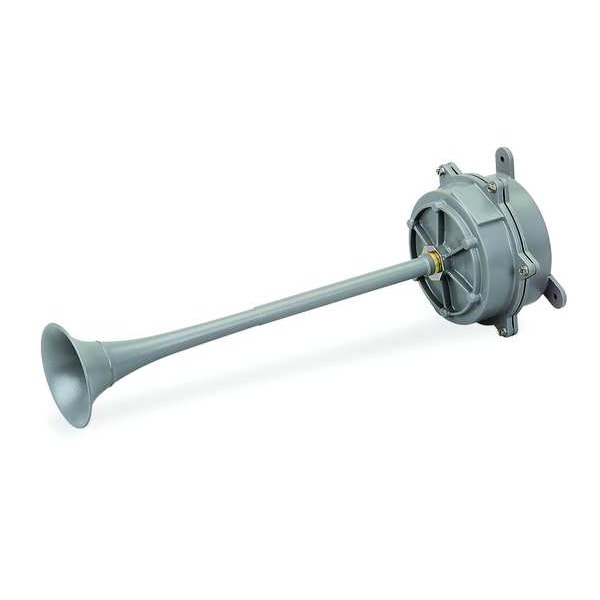

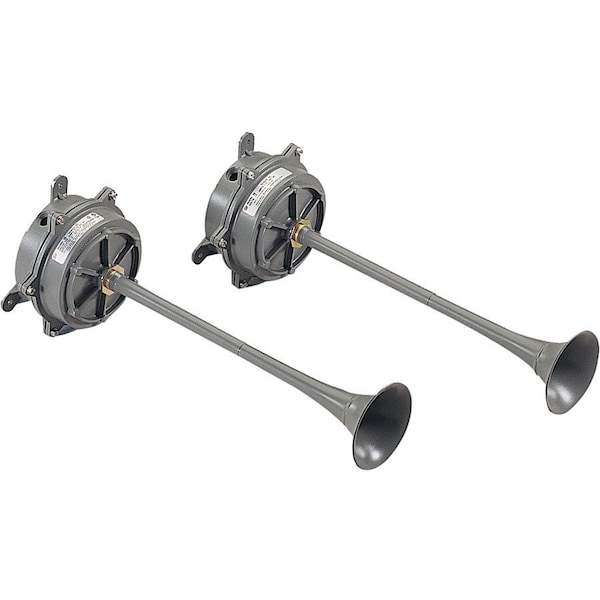

Resonating Horn, Horn, Continuous, 120V AC, 105 dB, Cast Aluminum, Gray, Pivot/Swivel Mount

  • Mfr # 55-120-1
  • Zoro # G2351465
product price:
$
1,029.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast Aluminum
Mounting
Pivot/Swivel
Amps
0.75 AC
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
55-120-1
Zoro #
G2351465
UPC #
782979228905
Country of Origin
United States
Item
Resonating Horn
Housing Material
Cast Aluminum
Mounting
Pivot/Swivel
Amps
0.75 AC
Color
Gray
Audible Alarm Type
Horn
Voltage
120V AC
Standards
CSA Certified, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
105 dB
Sound Pattern
Continuous
Operating Temp.
-35 Degrees to 150 Degrees F
Vibrating
No
Includes
Swivel Bracket
Visual Indicator Type
No Visual Indicator
Power Source
AC Supply
Alarm Type
Audible
Input Voltage
120 V AC
Features
Weatherproof, Water- and Dust-Tight
Rating
NEMA 4
Material
Cast Aluminum
Product Type
Horn
For Location
Indoor, Outdoor
Sound Continuity
Continuous
Alarm Volume @ 1 m - Maximum
115 dBA
Operating Temperature - Minimum
-35 Degrees F
Operating Temperature - Maximum
150 Degrees F
Sound Style
Horn
Sound Principle
Resonating
Mounting Style
Surface Mount
Vibration
No Vibration
IP Rating
NEMA 4
Alarm Volume @ 10 ft - Maximum
105 dBA
NEMA Rating
NEMA 3R
Includes Mounting Hardware
Mounting Hardware Included
Operating Voltage
120V AC

Description

FEDERAL SIGNAL 55-120-1 is a resonating horn with a continuous audible sound pattern. It operates on 120V AC and produces 105 dB at 10 ft. for signaling in specified indoor or outdoor locations. The unit features a cast aluminum housing with NEMA 4 and NEMA 3R ratings for specified indoor or outdoor locations.

Key Features:

  • Alarm type: Audible horn with continuous sound pattern
  • Sound output: 105 dB at 10 ft.; 115 dBA maximum at 1 m
  • Power: 120V AC operating voltage; 0.75 AC amps
  • Construction: Cast aluminum housing in gray
  • Protection: Rated NEMA 4 and NEMA 3R
  • Mounting: Surface mount with pivot/swivel configuration; swivel bracket and mounting hardware included
  • Location: Indoor and outdoor use
  • Operating temperature: -35 degrees F to 150 degrees F
  • Standards: CSA Certified, UL Listed
  • Size: 8 in. H x 8 in. W x 19.75 in. D
