Shop EDWARDS SIGNALING

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Blue Lens, Gray Housing

  • Mfr # 869STRB-AQ

  • Zoro # G6115846

product price:
$
347.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Audible Alarm Type
Horn
Standards
UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
869STRB-AQ
Zoro #
G6115846
UPC #
782640239643
Country of Origin
Mexico

Dimensions

Depth
0.625 in
Width
5.5 in
Height
5.5 in
Overall Depth
5/8 in
Overall Width
5 1/2 in
Overall Length
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Color
Blue Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
24 V AC, 24V DC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Operating Temp.
-31 Degrees to 150 Degrees F Outdoor, 32 Degrees to 120 Degrees F Indoor
Light Output
20 CP
Visual Indicator Type
Strobe
Vibrating
No
Flashes per Minute
60
Lens Color
Blue
Housing Color
Gray
Current Drawn
462 mA @ 24V AC, 412 mA @ 24V DC
Power Source
Wire
Product Type
Horn and Strobe
Connection Type
Wire Leads
Light Intensity
20 CP
Alarm Volume @ 10 ft - Maximum
90 dB
Mounting Style
Flush Mount
Control Protocol
Direct Wire
Operating Current
0.462 A @ 24V AC, 0.412 A @ 24V DC
Light Source
Xenon
Sound Continuity
Continuous
Number of Sound Patterns
1
For Location
Indoor
Operating Temperature - Minimum
32 Degrees F
Light Operating Mode
Strobe
Brightness Selection
Fixed Brightness
Vibration
No Vibration
Sound Style
Horn
Operating Temperature - Maximum
120 Degrees F
Alarm Volume @ 1 m - Maximum
100 dB
Operating Voltage
24 V AC, 24V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

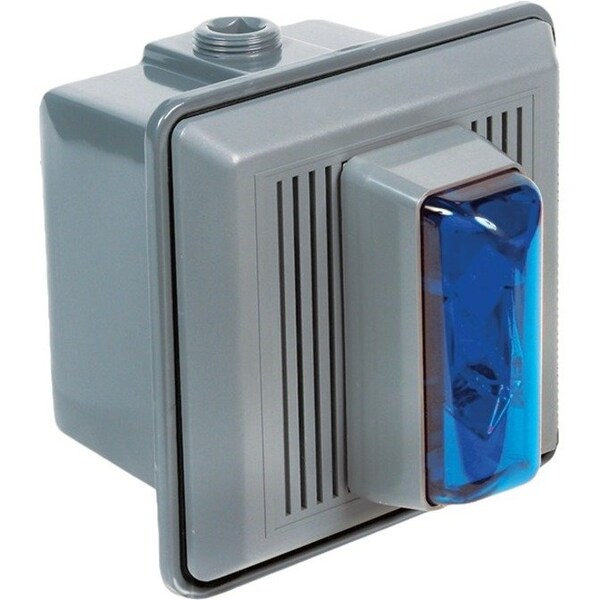

EDWARDS SIGNALING 869STRB-AQ is an indoor horn strobe that combines an audible horn with a blue xenon strobe in one direct-wire unit. It operates on 24V AC or 24V DC and provides a continuous sound pattern with visual strobe indication for facility signaling applications that specify both audible and visual notification.

Key Features:

  • Product type: Horn and strobe with audible horn alarm and visual strobe indicator
  • Sound output: 90 dB at 10 ft; 100 dB maximum at 1 m
  • Sound pattern: Continuous; 1 sound pattern
  • Light output: 20 CP blue strobe with xenon light source; 60 flashes per minute
  • Voltage: 24V AC or 24V DC
  • Current draw: 462 mA at 24V AC; 412 mA at 24V DC
  • Connection/control: Wire leads with direct-wire control protocol
  • Construction: Thermoplastic housing in gray with blue lens
  • Mounting: Flush mount; surface mounting configuration
  • Dimensions: 5.5 in H x 5.5 in W x 5/8 in D
  • Operating temperature: 32°F to 120°F
  • Standards: UL Listed
