Shop FEDERAL SIGNAL

Horn, Horn, Continuous, 12 to 24V DC, 16 to 33V DC, 90 dB, Plastic, Gray, Surface Mount

  • Mfr # 450E-024
  • Zoro # G9505824
product price:
$
209.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Plastic
Mounting
Surface
Amps
0.25
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
450E-024
Zoro #
G9505824
UPC #
782979231387
Country of Origin
China

Dimensions

Width
4.125 in
Height
4.125 in
Depth
2.7969 in
Overall Width
4 1/8 in
Overall Length
4 1/8 in
Overall Depth
2 25/32 in
Wire Rope Length
4 1/8 in
Length
4 1/8 in
Fits Chest Size
Coded or Sustained Tones

Details

Item
Horn
Housing Material
Plastic
Mounting
Surface
Amps
0.25
Color
Gray
Audible Alarm Type
Horn
Voltage
12V DC to 24V DC, 16V DC to 33V DC
Standards
CSFM Compliant, cUL Listed, Marine Rated, UL Fire Listed, UL Listed, ULC Fire Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
90 dB
Sound Pattern
Continuous
Vibrating
No
Operating Temp.
-65 Degrees to 150 Degrees F
Visual Indicator Type
No Visual Indicator
Includes
Panel Mount Gasket
Power Source
Wire
Alarm Type
Audible
Input Voltage
33 V DC
Features
Coded or Sustained Tones
Material
Polycarbonate
Wattage
5 W
Product Type
Horn
Sound Style
Horn
Operating Temperature - Maximum
150 Degrees F
Vibration
No Vibration
Alarm Volume @ 10 ft - Maximum
98 dBA
Connection Type
Terminal Block
Includes Mounting Hardware
Mounting Hardware Included
IP Rating
IP66
Alarm Volume @ 1 m - Maximum
108 dBA
Mounting Style
Surface Mount
Sound Continuity
Continuous
NEMA Rating
NEMA 4X
For Location
Indoor, Outdoor
Operating Temperature - Minimum
-65 Degrees F
Operating Voltage
12 to 24V DC, 16 to 33V DC
Power Source - TS Only
Wire
Power Source - old
Wire
Shell Material
Polycarbonate

Description

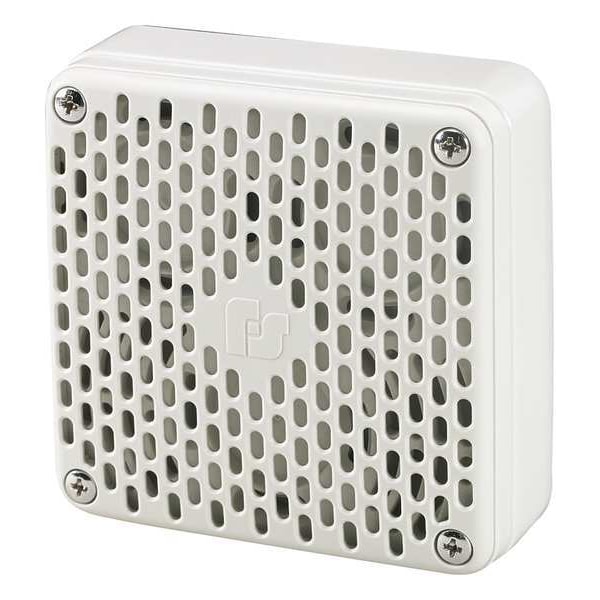

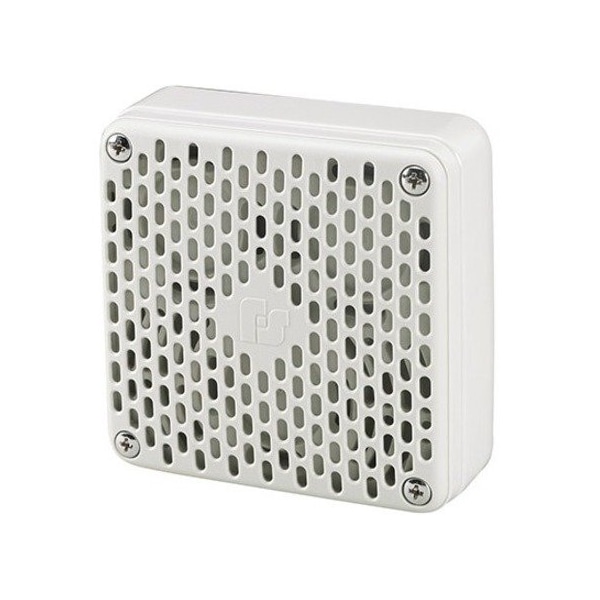

FEDERAL SIGNAL 4.50E-22 is a surface-mount audible horn for signaling applications in locations consistent with the product’s listed enclosure ratings. It produces a continuous horn sound and supports coded or sustained tones. The unit operates on 12 to 24V DC and 16 to 33V DC, with a wired power source and terminal block connection. Its gray polycarbonate housing is designed for surface installation and includes mounting hardware and a panel mount gasket.

Key Features:

  • Audible horn with no visual indicator.
  • 90 dB nominal sound output, with maximum sound levels of 108 dBA at 1 m and 98 dBA at 10 ft.
  • Continuous horn sound with coded or sustained tone operation.
  • 12 to 24V DC and 16 to 33V DC operating voltage range.
  • 0.25 A current draw and 5 W wattage.
  • Gray polycarbonate housing.
  • Surface-mount design with mounting hardware included.
  • Terminal block connection.
  • IP66 and NEMA 4X enclosure ratings.
  • Operating temperature range: -65 degrees F to 150 degrees F.
  • Includes multiple CSFM, cUL, UL, ULC, and marine ratings.
  • Panel mount gasket included.
