  6. Strobe Light, Amber, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface

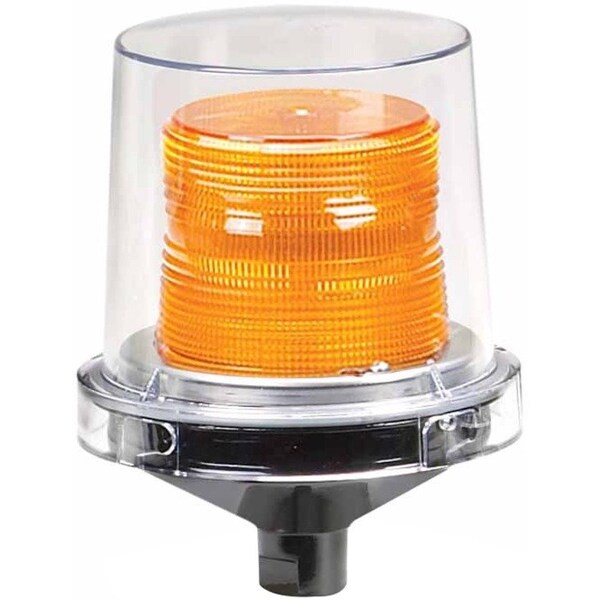

Federal Signal Strobe Light, Amber, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface 224XST-024A - main

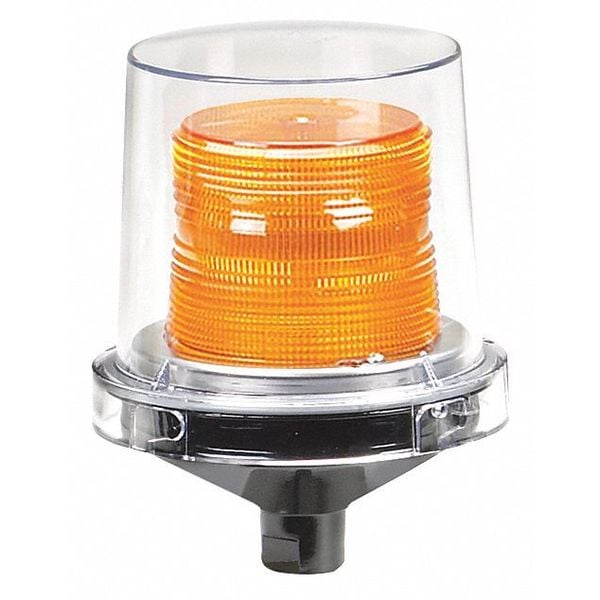

Strobe Light, Amber, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface

  • Mfr # 224XST-024A

  • Zoro # G4770722

product price:  $860.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
224XST-024A
Zoro #
G4770722
UPC #
782979215554
Country of Origin
United States

Dimensions

Height
7 1/2 in
Overall Diameter
5 1/2 in
Depth
5 1/2 in
Width
5 1/2 in
Diameter
5 1/2 in
Overall Depth
7 1/2 in
Footprint Diameter
5 1/2 in

Details

Item
Strobe Light
Color
Amber
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
Housing Material
Aluminum
Standards
CSA Certified, CSFM Approved, cUL Listed, cULus Listed, UL Listed
Features
Conformal Coated PCBA
Voltage
24V DC
Green Environmental Attribute
Does Not Contain Methylene Chloride
Rating
IP66, NEMA 4X
Lens Design
Fresnel
Light Output
580,000 Candela
Mounting
1/2 in NPT Pipe or Surface
Operating Temp.
-40 Degrees to 104 Degrees F
Current Drawn
0.7A DC
For Use With
Food Processing, Security, Chemical Plant
Product Type
Strobe Light
Audible Alarm Type
Visual
Connection Type
Wire
NEMA Rating
NEMA 4X
Lens Shape
Dome
Operating Current
0.700 A @ 24V DC
Light Operating Mode
Strobe
Requires Base
Base Required
Mounting Style
Surface Mount
Operating Temperature - Maximum
104 Degrees F
Lifespan
10,000 hr
Includes Mounting Hardware
No Mounting Hardware
IP Rating
IP66, IP69K
Control Protocol
Direct Wire
Footprint Shape
Circle
Light Intensity
580,000 cd
Brightness Selection
Fixed Brightness
Operating Temperature - Minimum
-40 Degrees F
For Hazardous Location
Class I, Division 2, Class II, Division 2
Lens Color
Amber
Housing Color
Black
Operating Voltage
24V DC

Description

Strobe Light, Color Amber, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 580,000 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Aluminum, Mounting 1/2 in NPT Pipe or Surface, Operating Temp. -40 Degrees to 104 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 0.7A DC, Width 5 1/2 in, Depth 5 1/2 in, Height 7 1/2 in, Voltage 24V DC
