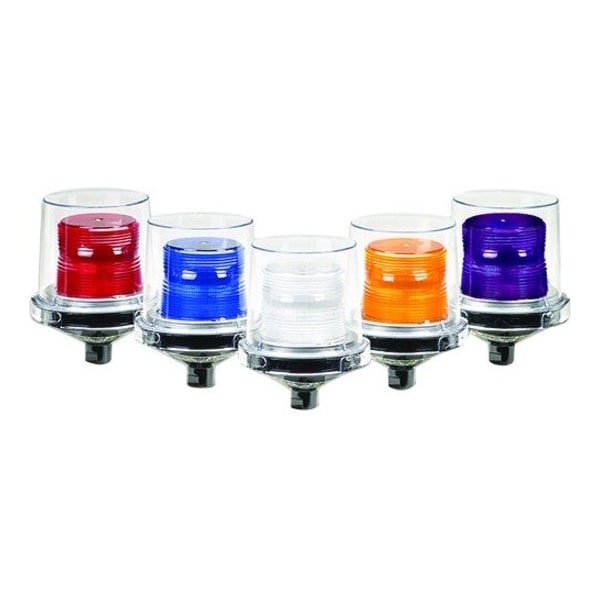

Federal Signal Strobe Light, Blue, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface 224XST-024B - main

Strobe Light, Blue, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface

  • Mfr # 224XST-024B

  • Zoro # G4815087

product price:  $860.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
224XST-024B
Zoro #
G4815087
UPC #
782979215561
Country of Origin
United States

Dimensions

Height
7 1/2 in
Overall Diameter
5 1/2 in
Diameter
5 1/2 in
Depth
5 1/2 in
Width
5 1/2 in
Overall Depth
7 1/2 in
Footprint Diameter
5 1/2 in

Details

Item
Strobe Light
Color
Blue
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
Housing Material
Aluminum
Standards
CSA Certified, CSFM Approved, cUL Listed, cULus Listed, UL Listed
Features
Conformal Coated PCBA
Voltage
24V DC
Green Environmental Attribute
Does Not Contain Methylene Chloride
Rating
IP66, NEMA 4X
Light Output
580,000 Candela
Mounting
1/2 in NPT Pipe or Surface
Lens Design
Fresnel
Current Drawn
0.7A DC
Operating Temp.
-40 Degrees to 104 Degrees F
For Use With
Security, Chemical Plant, Food Processing
Product Type
Strobe Light
Connection Type
Wire
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Mounting Style
Surface Mount
Control Protocol
Direct Wire
Operating Temperature - Maximum
104 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Brightness Selection
Fixed Brightness
For Hazardous Location
Class I, Division 2, Class II, Division 2
Lens Shape
Dome
IP Rating
IP66, IP69K
Lifespan
10,000 hr
Light Operating Mode
Strobe
Footprint Shape
Circle
Includes Mounting Hardware
No Mounting Hardware
Requires Base
Base Required
Light Intensity
580,000 cd
Operating Current
0.700 A @ 24V DC
Lens Color
Blue
Housing Color
Black
Operating Voltage
24V DC

Description

Strobe Light, Color Blue, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 580,000 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Aluminum, Mounting 1/2 in NPT Pipe or Surface, Operating Temp. -40 Degrees to 104 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 0.7A DC, Width 5 1/2 in, Depth 5 1/2 in, Height 7 1/2 in, Voltage 24V DC
