  6. Strobe Light, Blue, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe

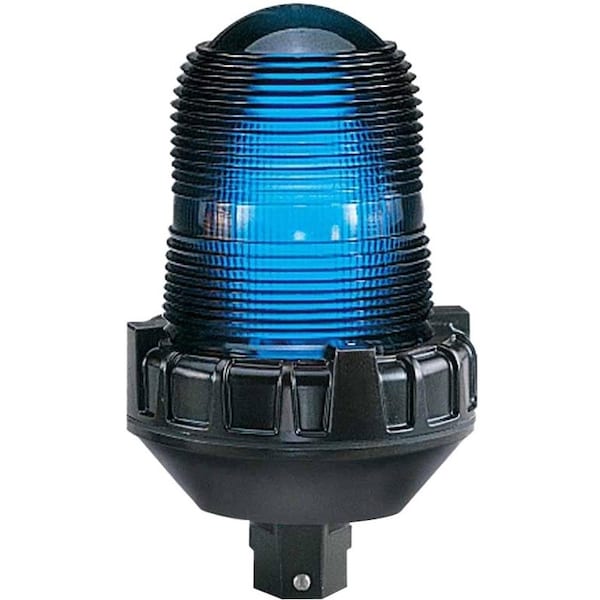

Federal Signal Strobe Light, Blue, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe 154XST-012-024B - main

Strobe Light, Blue, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe

  • Mfr # 154XST-012-024B

  • Zoro # G4876492

product price:  $1,005.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Glass
Flashes per Minute
80
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
154XST-012-024B
Zoro #
G4876492
UPC #
782979211426
Country of Origin
United States

Dimensions

Height
9 1/4 in
Overall Diameter
5 1/2 in
Depth
5 1/2 in
Diameter
5 1/2 in
Width
5 1/2 in
Overall Depth
9 1/4 in
Footprint Diameter
5 1/2 in

Details

Item
Strobe Light
Color
Blue
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Glass
Flashes per Minute
80
Housing Material
Aluminum
Standards
CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed
Features
Conformal Coated PCBA
Voltage
24V DC
Current Drawn
0.6A DC
Includes
Dome Guard
Light Output
520,000 Candela
Rating
IP66, Marine, NEMA 4X
Operating Temp.
-67 Degrees to 150 Degrees F
Green Environmental Attribute
Does Not Contain Methylene Chloride
Lens Design
Fresnel
Mounting
3/4 in NPT Pipe
For Use With
Security, Plant Evacuation, Outdoor, Forklift, Indoor
Product Type
Warning Light
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Connection Type
Wire
Light Operating Mode
Strobe
Footprint Shape
Circle
Requires Base
Base Not Required
Lifespan
10,000 hr
IP Rating
IP66, IP69K
Mounting Mechanism
3/4 in NPT
Lens Shape
Dome
Housing Color
Black
Brightness Selection
Fixed Brightness
Mounting Style
Surface Mount
Includes Mounting Hardware
Mounting Hardware Included
Operating Temperature - Minimum
-67 Degrees F
For Location
Indoor, Outdoor
For Hazardous Location
Class I, Division 2, Class II, Division 1
Light Intensity
520,000 cd
Operating Current
0.600 A @ 24V DC
Operating Temperature - Maximum
150 Degrees F
Control Protocol
Direct Wire
Lens Color
Blue
Operating Voltage
24V DC

Description

Strobe Light, Color Blue, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 520,000 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Glass, Housing Material Aluminum, Mounting 3/4 in NPT Pipe, Operating Temp. -67 Degrees to 150 Degrees F, Rating IP66, Marine, NEMA 4X, Power Source Wire, Current Drawn 0.6A DC, Width 5 1/2 in, Depth 5 1/2 in, Height 9 1/4 in, Voltage 24V DC
