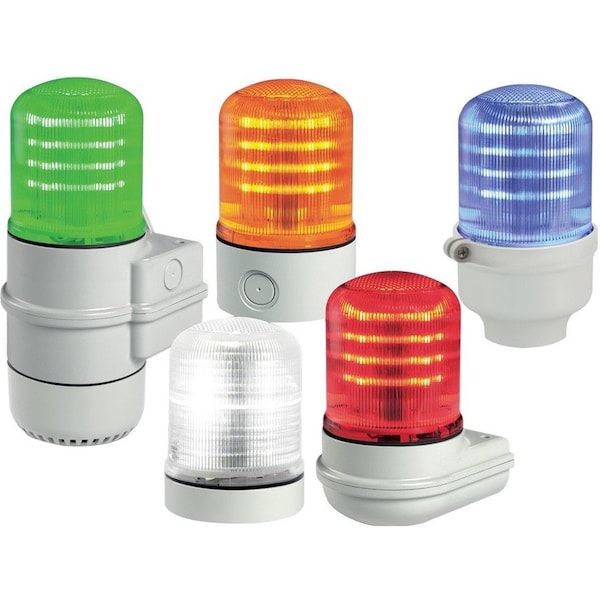

Federal Signal Warning Light, Red, LED, 12 to 24V AC/DC, 120 to 240V AC, 85, 120 FPM, 3 29/32 in Dia. SLM100R - main

Warning Light, Red, LED, 12 to 24V AC/DC, 120 to 240V AC, 85, 120 FPM, 3 29/32 in Dia.

  • Mfr # SLM100R

  • Zoro # G4760703

product price:  $267.99
/ea
Free Shipping & Returns

Key Features

Color
Red
Lamp Type
LED
Power Source
Wire
Lamp Life
50,000 hr
Lens Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SLM100R
Zoro #
G4760703
UPC #
782979232094
Country of Origin
Italy

Dimensions

Height
4 15/64 in
Overall Diameter
3 29/32 in
Depth
3 29/32 in
Diameter
3 29/32 in
Width
3 29/32 in
Footprint Diameter
3 7/8 in
Overall Depth
4 7/32 in

Details

Item
Warning Light
Color
Red
Lamp Type
LED
Power Source
Wire
Lamp Life
50,000 hr
Lens Material
Polycarbonate
Flashes per Minute
85, 120
Housing Material
Polycarbonate
Standards
CE, cULus Listed, UKCA
Features
Multiple Input Technology, The Flashing Light Mode has a Powerful Effect Ideal for Attracting Attention without Alarming
Voltage
12 to 24V AC/DC, 120 to 240V AC
Current Drawn
70 to 510mA AC/DC
Rating
IP66, NEMA 4X
Lens Design
Fresnel
Mounting
Deep, Dual, Pipe, Shallow, Twin
Operating Temp.
-22 Degrees to 122 Degrees F
Light Output
13 Candela
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Includes
SLM Top Module
For Use With
Outdoor
Product Type
Warning Light
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Includes Mounting Hardware
Mounting Hardware Included
Housing Color
Gray, Red
For Location
Outdoor
Light Operating Mode
Flashing, Rotating, Steady
Operating Temperature - Minimum
-40 Degrees F
Lifespan
100,000 hr
Lens Shape
Dome
Light Source
LED
IP Rating
IP66, IP69K
Brightness Selection
Fixed Brightness
Requires Base
Base Required
Operating Current
100 A @ 120V AC, 250 A @ 24V AC, 250 A @ 24V DC, 270 A @ 12V AC, 270 A @ 12V DC, 70 A @ 240V AC
Footprint Shape
Circle
Lens Color
Red
Operating Temperature - Maximum
131 Degrees F
Control Protocol
Direct Wire
Mounting Style
Surface Mount
Light Intensity
13 cd
Operating Voltage
12 to 24V AC/DC, 120 to 240V AC

Description

Warning Light, Color Red, Lamp Type LED, Flashes per Minute 85, 120, Light Output 13 Candela, Lamp Life 50,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting Deep, Dual, Pipe, Shallow, Twin, Operating Temp. -22 Degrees to 122 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 70 to 510mA AC/DC, Width 3 29/32 in, Depth 3 29/32 in, Height 4 15/64 in, Voltage 12 to 24V AC/DC or 120 to 240V AC
