  6. Warning Light, Red, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., (F) 1/2 in NPT

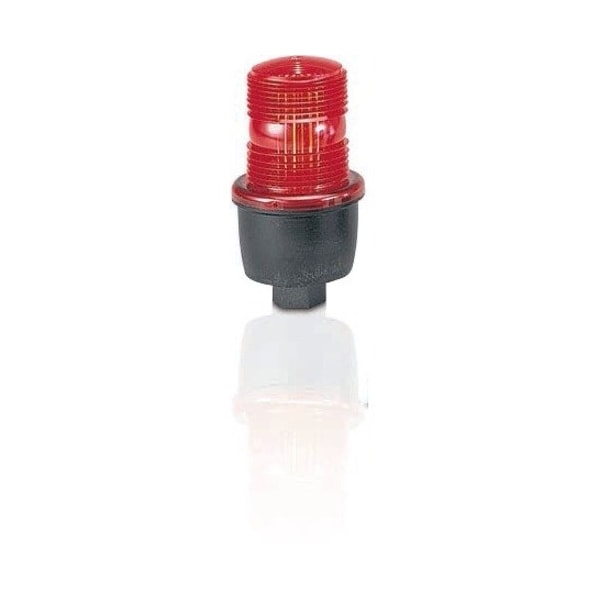

Federal Signal Warning Light, Red, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., (F) 1/2 in NPT LP3PL-024R - main

Warning Light, Red, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., (F) 1/2 in NPT

  • Mfr # LP3PL-024R

  • Zoro # G1519086

product price:  $159.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Steady Burn LED
Power Source
Wire
Lamp Life
100,000 hr
Lens Material
Polycarbonate
Height
5 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP3PL-024R
Zoro #
G1519086
UPC #
782979224808
Country of Origin
United States

Dimensions

Height
5 3/4 in
Overall Diameter
3 1/8 in
Diameter
3 1/8 in
Depth
5 5/8 in
Overall Depth
5 11/16 in
Footprint Diameter
3 1/8 in

Details

Item
Warning Light
Color
Red
Lamp Type
Steady Burn LED
Power Source
Wire
Lamp Life
100,000 hr
Lens Material
Polycarbonate
Housing Material
Polycarbonate
Standards
CE, CSA Certified, cUL Listed, UKCA, UL Listed
Features
PLC Compatible, Screw-On Lens
Voltage
24V DC
Lens Design
Screw-on Dome
Current Drawn
0.08A DC
Operating Temp.
-31 Degrees to 150 Degrees F
Light Output
8.2 Joules
Rating
NEMA 4X
Includes
Gasket
Mounting
(F) 1/2 in NPT
For Use With
Outdoor, Indoor, Security
Product Type
Warning Light
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Lifespan
50,000 hr
Operating Temperature - Maximum
150 Degrees F
Requires Base
Base Not Required
Housing Color
Black
Vibration
No Vibration
Light Source
LED
Lens Color
Red
Lens Shape
Dome
Includes Mounting Hardware
Mounting Hardware Included
Operating Temperature - Minimum
-31 Degrees F
Brightness Selection
Fixed Brightness
For Location
Indoor, Outdoor
Operating Current
0.150 A @ 24V DC
Mounting Style
Surface Mount
Control Protocol
Direct Wire
Light Operating Mode
Steady
Footprint Shape
Circle
IP Rating
IP55, IP66, IP69K
Operating Voltage
24V DC

Description

Warning Light, Color Red, Lamp Type Steady Burn LED, Flashes per Minute Not Applicable, Light Output 8.2 Joules, Lamp Life 100,000 hr, Lens Design Screw-on Dome, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting (F) 1/2 in NPT, Operating Temp. -31 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 0.08A DC, Depth 5 5/8 in, Height 5 3/4 in, Voltage 24V DC
