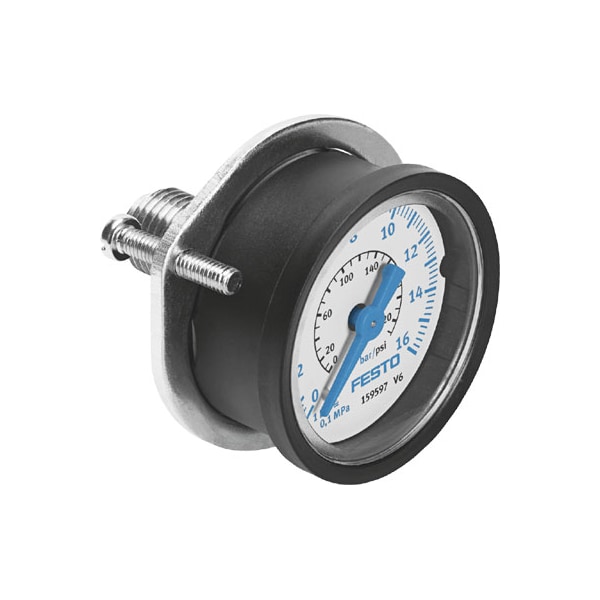

Flanged Pressure Gauge FMA-50-16-1/4-EN
Mfr # FMA-50-16-1/4-EN
Zoro # G102721473
product price:Â $62.59
/eaKey Features
Primary Pressure Range
0 MPa to 1.6 MPa
IP/NEMA Rating
IP43
Housing colour
Black
Material of screwed plug
Brass
Measurement accuracy class
2.5
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- FMA-50-16-1/4-EN
- Zoro #
- G102721473
- UPC #
- -
- Country of Origin
- Poland
Dimensions
- Nominal Dial Size
- 50 ga
Details
- Primary Pressure Range
- 0 MPa to 1.6 MPa
- IP/NEMA Rating
- IP43
- Housing colour
- Black
- Material of screwed plug
- Brass
- Measurement accuracy class
- 2.5
- Pneumatic connection
- G1/4
- Housing material
- ABS
- Materials in contact with the media
- Brass
- Fastening ring material
- Steel
- Ambient temperature
- -20 °C to 60 °C
- Display range
- 0 psi to 232 psi
- Intermittent load factor
- 0.66
- Temperature of medium
- -20 °C to 60 °C
- Type of mounting
- Front panel mounting
- Connection position
- Centered on rear side
Description
Flanged Pressure Gauge Fma-50-16-1/4-En With Display Unit In Bar And Psi. Indicating Range [Bar]=0 - 16 Bar, Conforms To Standard=En 837-1, Nominal Size Of Pressure Gauge=50, Design Structure=Bourdon-Tube Pressure Gauge, Mounting Type=Front Panel Installation
