  9. DEF Nozzle, 3/4" Inlet, 3/4" Outlet, PP/SS
Shop All Fuel Transfer Accessories
Fill-Rite

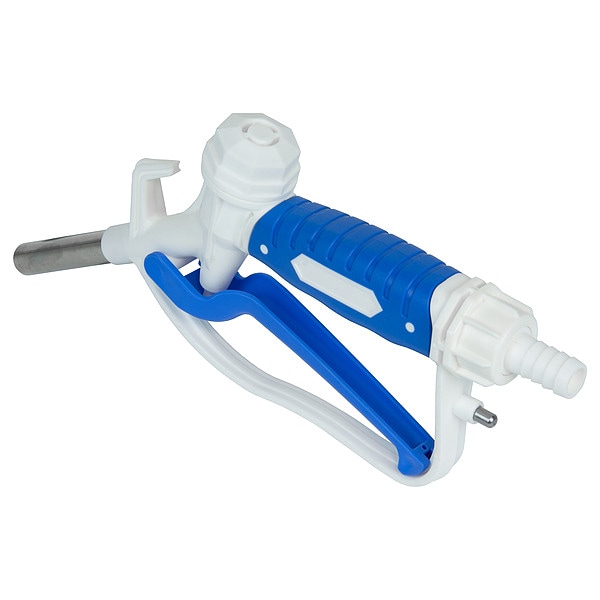

DEF Nozzle, 3/4" Inlet, 3/4" Outlet, PP/SS

product price: $69.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Operation Manual
  • Inlet 3/4"
  • Outlet 3/4"
  • Material Polypropylene, Stainless Steel
  • Max. Pressure 50 psi
See all product information

Product Information

Dimensions

Size 3/4"
Diameter 3/4"
Overall Length 15 1/2 in
Inlet Size 3/4 in
Spout Connection Size 3/4 in
Spout Discharge Size 3/4 in
Spout Length 6 1/2 in

Details

Item Drum Pump Nozzle
Operation Manual
Inlet 3/4"
Outlet 3/4"
Material Polypropylene, Stainless Steel
Max. Pressure 50 psi
For Use With Diesel Exhaust Fluid
Application Diesel
Wetted Materials Stainless Steel
Metered No
Nozzle Material Polypropylene
Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formic Acid, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
For Media Type DEF
Compatible Chemicals DEF
Spout Connection Type Hose Barb
Nozzle Operation Manual
Max. Fluid Temp. 120 Degrees F
Food Grade No
Inlet Type BSP
Diesel Exhaust Fluid Compatible Yes
Spout Material Stainless Steel
Max. Operating Pressure 50 psi
Min. Fluid Temp. 15 Degrees F
Primary Color Blue
Grease NT
Gear Lube NT

Description

Drum Pump Nozzle, Overall Length 15 1/2 in, Primary Color Blue, Food Grade No, For Use With Diesel Exhaust Fluid, Compatible Chemicals DEF, Spout Material Stainless Steel, Max. Operating Pressure 50 psi, Min. Fluid Temp. 15 Degrees F

Restrictions
