MFR # DPFV015
Zoro # G1018656
UPC # -
Country of Origin United States

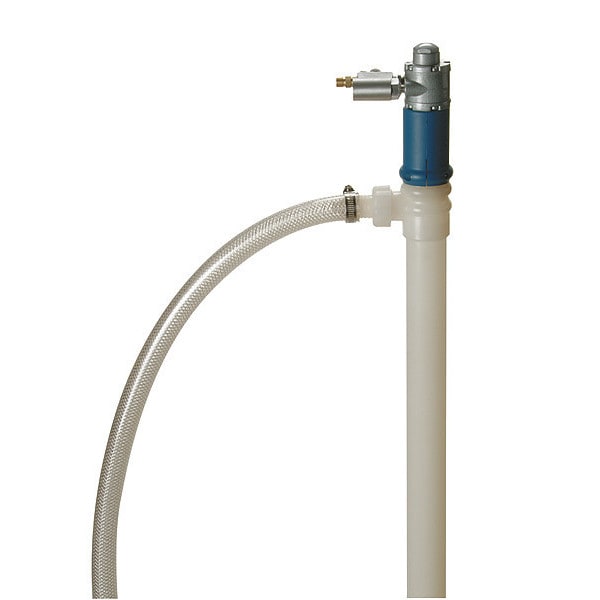

Item Air Drum Pump For Media Type
See full list of For Media Type Acetic Acid,Ammonium Hydroxide,Antifreeze,Automatic Transmission Fluid,Bleach,Calcium Chloride,Chromic Acid,Citric Acid,Ethylene Glycol,Fertilizers,Formic Acid,Fungicides,Herbicides,Hydrochloric Acid,Hydrofluoric Acid,Nitric Acid,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sulfuric Acid,Trichlorethylene,Water
Max. Flow Rate 22 gpm
Max. Viscosity 330 cps
Diesel Exhaust Fluid Compatible No
Wetted Materials Alloy 625, PTFE, PVDF, Viton
Includes Suction Tube Yes
For Use With Chemicals
Discharge Tube Outlet ID 1 in
Hose Tube Material PVC
Discharge Tube Outlet OD 1 1/4 in
Self-Priming Yes
Metered No
Motor Type Air
Discharge Tubing Material PVC
Includes Clamp, Hose, Motor
Max. Air Inlet (PSI) 16
Max. Flow GPM 22
Motor RPM 9,000 RPM
Seal Material FKM
Suction Tube Material PVDF
Thermal Protection No
Food Grade No
Includes Discharge Hose Yes
Includes Spout Yes
Suction Tube ID 2 in
For Container Type Drum
Duty Cycle Continuous
Runs Dry No
Includes Nozzle No
Motor HP 1/2 hp
Max. Head Pressure 16.5 psi
Variable Speed Yes
Includes Bung Adapter No
Housing Material - Pumps PVDF
Suction Tube OD 2 in Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Acetic Acid 80%,Ammonium Hydroxide,Antifreeze (Coolant),Automatic Transmission Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Deionized Water,Ethylene Glycol,Fertilizers,Formic Acid,Fresh Water,Fungicides,Herbicides,Hydrochloric/Muriatic Acid (100%),Hydrochloric/Muriatic Acid (20%),Hydrochloric/Muriatic Acid (37%),Hydrofluoric Acid (20%),Hydrofluoric Acid (75%),Hydrofluoric Acid 100%,Nitric Acid (10% Solution),Nitric Acid (20% Solution),Nitric Acid (50% Solution),Nitric Acid (Concentrated Solution),Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfate,Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%),Sulfuric Acid (10% - 75%),Sulfuric Acid (75% - 100%),Sulfuric Acid (to 10%),Trichlorethylene (50%)
Series PF
Power Source Air
Max. Oil Flow 17 gpm
Min. Air Pressure 80 psi
Pump Connection OD 2 in
Max. Air Pressure 80 psi
Discharge Connection Type Hose Barb
Noise Level 78 dB Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetone,Ammonia Liquid,Anhydrous Ammonia,Biodiesel,Brake Fluid,Cyclohexane,DEF,Diesel Fuel,E85,Ethanol,Ethyl Acetate,Formaldehyde,Formaldehyde 40%,Gasoline,Glacial Acetic Acid,Glycerin,Heptane,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Isopropanol,Kerosene,Lacquer Thinners,Methanol,Methyl Ethyl Ketone,Naphtha,Paint Thinner,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Toluene,Turpentine,Windshield Washer Fluid,Xylene
Max. Fluid Temp. 120 Degrees F
Pump Connection ID 2 in
Explosion Proof Yes
Max. Head - Pumps 38 ft
Gear Lube NT
Min. Operating Temp. 35 Degrees F
Container Cover Type Included No Cover Included
Motor Speed 9,000 RPM
Hazardous Location Class Not Rated
Maximum Oil Flow 17 gpm
Maximum Head 38 ft
Standards CE
Housing Material PVDF
Pump Technology Centrifugal
Maximum Head Pressure 16.5 psi
Maximum Air Pressure 80 psi
Maximum Fluid Temperature 120 Degrees F
Maximum Flow Rate 22 gpm
Spout Connection Type Hose Barb
Meter Type Included No Meter Included
Minimum Air Pressure 80 psi
Static Protection Not Groundable
Air Inlet Connection Type MNPT
Motor Horsepower 1/2 hp
Mounting Bracket Included No Mounting Bracket Included
Includes Follower Plate No Follower Plate Included
Minimum Fluid Temperature 32 Degrees F
Maximum Viscosity 330 cps
Maximum Outlet Pressure 16.5 psi
Air Consumption 32 cfm
Wetted Material Alloy 625/FKM/PTFE/PVDF
Hose Cover Material PVC
Spout Material PVDF Chemical Compatibility
See full list of Chemical Compatibility Acetic Acid 20%,Acetic Acid 80%,Ammonium Hydroxide,Antifreeze Coolant,Automatic Transmission Fluid,Bleach,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Concentrated Nitric Acid,Deionized Water,Ethylene Glycol,Fertilizers,Formic Acid,Fresh Water,Fungicides,Herbicides,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Phosphoric Acid 40% Solution,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Trichlorethylene 50%
Power Source - TS Only Air
Power Source - old Air
