Shop FILL-RITE

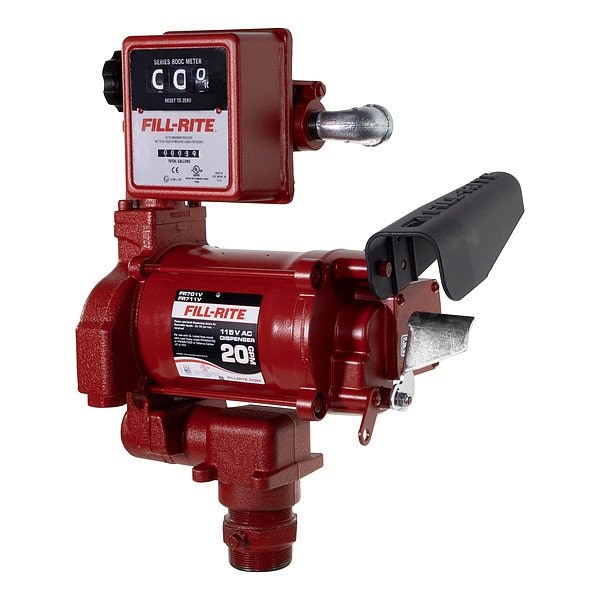

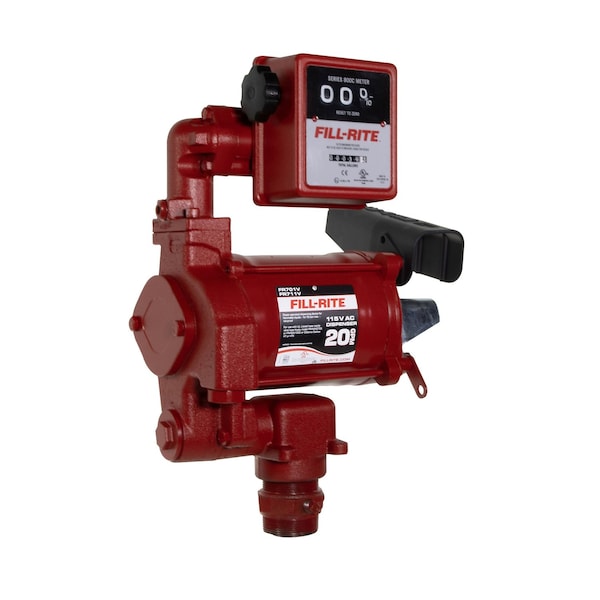

Electric Drum Pump, Cast Iron, 115 V AC

  • Mfr # FR701VN

  • Zoro # G022785524

product price:  $914.99
/ea
Free Shipping & Returns

Key Features

Includes
Hard-Wire
Discharge Tube Outlet ID
3/4 in
Maximum Oil Flow
20 gpm
Overall Length
14 3/16 in
Duty Cycle
30 Minutes On/30 Minutes Off
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR701VN
Zoro #
G022785524
UPC #
089404258002
Country of Origin
United States

Dimensions

Overall Length
14 3/16 in
Adapter Connection Diameter
2 in
For Container Size
35 gal, 55 gal, 80 gal, 275 gal, 500 gal
Wire Rope Length
14 3/16 in

Details

Includes
Hard-Wire
Discharge Tube Outlet ID
3/4 in
Maximum Oil Flow
20 gpm
Duty Cycle
30 Minutes On/30 Minutes Off
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Heptane, Kerosene, Mineral Spirits, Stoddard Solvent
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Adapter Connection Standard
MNPT
Includes Spout
No
Includes Suction Tube
No
Pump Connection OD
1 3/8 in
Item
Electric Drum Pump
Variable Speed
No
Thermal Protection
Yes
Discharge Connection Type
FNPT
Includes Follower Plate
No Follower Plate Included
Pump Connection ID
1 in
Motor Horsepower
33/100 hp
Hazardous Location Class
Class I/Division 1
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Container Cover Type Included
No Cover Included
Minimum Fluid Temperature
-40 Degrees F
Housing Material
Cast Iron
Phase
Single
Maximum Outlet Pressure
23 psi
Rated Voltage
115 V AC
Self-Priming
Yes
Container Type Included
Drum
Maximum Head
53 ft
Pump Technology
Vane
Maximum Fluid Temperature
150 Degrees F
For Container Type
Tank
Includes Discharge Hose
No
Power Source - TS Only
Corded Electric
Includes Nozzle
No
Frequency
60 hz
Mount Type
Bung
Static Protection
No Grounding Line Included
Maximum Flow Rate
20 gpm
Includes Bung Adapter
Yes
Full Load Current
5.5 A
Features
Equipment Safeguard, High Performance, Long Life, Reliable Technology, Stationary Tanks
Meter Type Included
No Meter Included
Maximum Viscosity
2.5 cSt
Power Source
Corded Electric

Description

Electric Drum Pump, Rated Voltage 115 V AC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Includes Bung Adapter Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Discharge Connection Type FNPT, Features Equipment Safeguard, High Performance, Long Life, Reliable Technology, Stationary Tanks

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
