Shop FILL-RITE

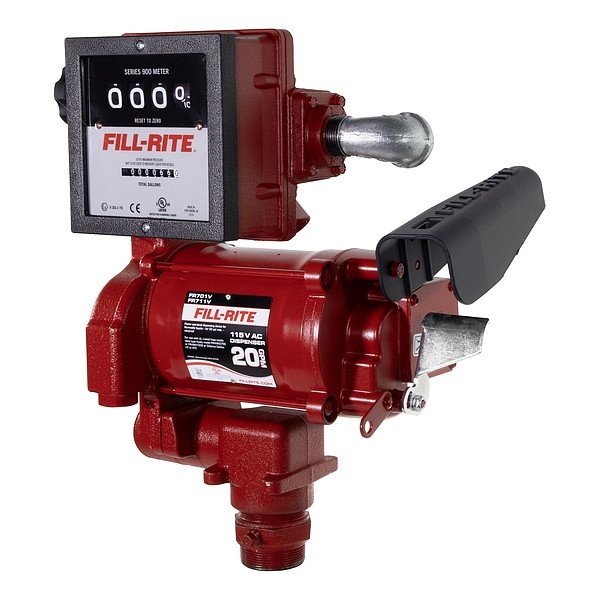

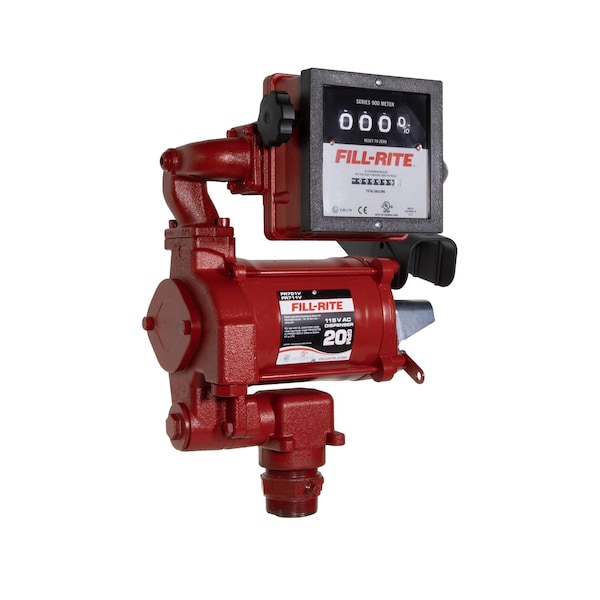

Electric Drum Pump, Cast Iron, 115 V AC

  • Mfr # FR711VN

  • Zoro # G622785245

product price:
$
1,000.99
/ea
Free Shipping & Returns

Key Features

For Container Size
35 gal, 55 gal, 80 gal, 275 gal, 500 gal
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Heptane, Kerosene, Mineral Spirits, Stoddard Solvent
Maximum Fluid Temperature
150 Degrees F
Motor Horsepower
33/100 hp
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FR711VN
Zoro #
G622785245
UPC #
089404258026
Country of Origin
United States
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Heptane, Kerosene, Mineral Spirits, Stoddard Solvent
Maximum Fluid Temperature
150 Degrees F
Motor Horsepower
33/100 hp
Phase
Single
Includes Follower Plate
No Follower Plate Included
Static Protection
No Grounding Line Included
Maximum Oil Flow
20 gpm
Includes Suction Tube
No
Thermal Protection
Yes
Pump Connection ID
1 in
Maximum Viscosity
2.5 cSt
Item
Electric Drum Pump
Power Source - TS Only
Corded Electric
Adapter Connection Standard
MNPT
Duty Cycle
30 Minutes On/30 Minutes Off
Variable Speed
No
Pump Technology
Vane
Housing Material
Cast Iron
Full Load Current
5.5 A
Maximum Outlet Pressure
23 psi
Includes Nozzle
No
Includes Spout
No
Maximum Head
53 ft
Includes
Hard-Wire
Maximum Flow Rate
20 gpm
Discharge Tube Outlet ID
1 in
Hazardous Location Class
Class I/Division 1
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Container Type Included
Drum
Pump Connection OD
1 3/8 in
Includes Bung Adapter
Yes
Meter Unit Of Measure
Gallons
For Container Type
Tank
Discharge Connection Type
FNPT
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Container Cover Type Included
No Cover Included
Minimum Fluid Temperature
-40 Degrees F
Includes Discharge Hose
No
Meter Type Included
Mechanical
Features
Equipment Safeguard, High Performance, Long Life, Reliable Technology, Stationary Tanks
Self-Priming
Yes
Rated Voltage
115 V AC
Mount Type
Bung
Frequency
60 hz
Power Source
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Rated Voltage 115 V AC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Includes Bung Adapter Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Discharge Connection Type FNPT, Features Equipment Safeguard, High Performance, Long Life, Reliable Technology, Stationary Tanks
