Shop FILL-RITE

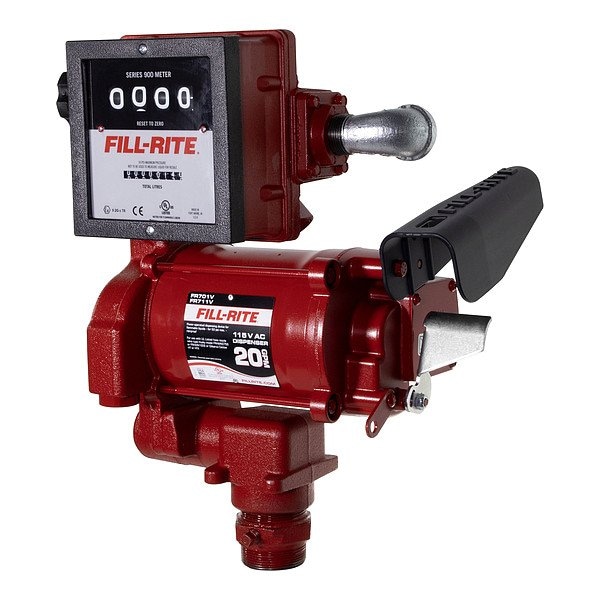

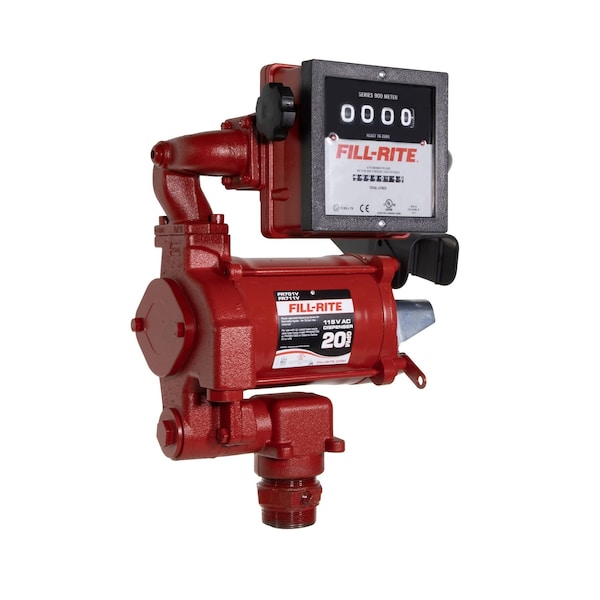

Electric Drum Pump, Cast Iron, 115 V AC

  • Mfr # FR711VLN

  • Zoro # G022784343

product price:  $1,000.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Pump Connection OD
1 3/8 in
Rated Voltage
115 V AC
Hazardous Location Class
Class I/Division 1
Maximum Flow Rate
20 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR711VLN
Zoro #
G022784343
UPC #
089404258019
Country of Origin
United States

Dimensions

Overall Length
14 3/8 in
For Container Size
35 gal, 55 gal, 80 gal, 275 gal, 500 gal
Adapter Connection Diameter
2 in
Wire Rope Length
14 3/8 in

Details

Phase
Single
Pump Connection OD
1 3/8 in
Rated Voltage
115 V AC
Hazardous Location Class
Class I/Division 1
Maximum Flow Rate
20 gpm
Container Cover Type Included
No Cover Included
Self-Priming
Yes
Includes Discharge Hose
No
Mount Type
Bung
Maximum Head
53 ft
Maximum Viscosity
2.5 cSt
Includes Spout
No
Discharge Tube Outlet ID
1 in
Pump Technology
Vane
Duty Cycle
30 Minutes On/30 Minutes Off
Motor Horsepower
33/100 hp
Features
Equipment Safeguard, High Performance, Long Life, Reliable Technology, Stationary Tanks
Meter Unit Of Measure
Liters
Minimum Fluid Temperature
-40 Degrees F
Includes Suction Tube
No
Static Protection
No Grounding Line Included
Includes Bung Adapter
Yes
Meter Type Included
Mechanical
Pump Connection ID
1 in
Item
Electric Drum Pump
Thermal Protection
Yes
Chemical Compatibility
Fuel Oil
Includes
Hard-Wire
Maximum Outlet Pressure
23 psi
Discharge Connection Type
FNPT
Maximum Oil Flow
20 gpm
Adapter Connection Standard
MNPT
Variable Speed
No
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Motor Enclosure Design
Totally Enclosed Non-Ventilated
For Container Type
Tank
Housing Material
Cast Iron
Includes Follower Plate
No Follower Plate Included
Maximum Fluid Temperature
150 Degrees F
Frequency
60 hz
Power Source - TS Only
Corded Electric
Container Type Included
Drum
Includes Nozzle
No
Full Load Current
5.5 A
Power Source
Corded Electric

Description

Electric Drum Pump, Rated Voltage 115 V AC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Includes Bung Adapter Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Discharge Connection Type FNPT, Features Equipment Safeguard, High Performance, Long Life, Reliable Technology, Stationary Tanks

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
