  9. Flowmeter, For 1" Pipe, FNPT, 2 to 35 gpm

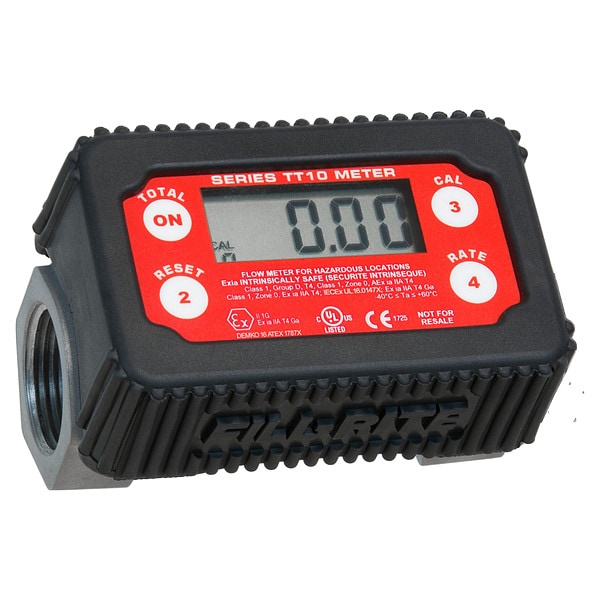

Fill-Rite Flowmeter, For 1" Pipe, FNPT, 2 to 35 gpm TT10ANC - main

Flowmeter, For 1" Pipe, FNPT, 2 to 35 gpm

  • Mfr # TT10ANC

  • Zoro # G7406896

product price: $264.99
/ea
Free Shipping & Returns

Key Features

Standards
ATEX, CE Certified, cULus Listed, IECEx
Accuracy
+/-1%
Length (In.)
3 in
Housing Material
Aluminum
Display Type
Digital
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TT10ANC
Zoro #
G7406896
UPC #
089404226308
Country of Origin
United States

Dimensions

Length (In.)
3 in
Connection Size
1 in
For Pipe Size
1 in
Overall Length
2.5 in

Details

Item
Flowmeter
Standards
ATEX, CE Certified, cULus Listed, IECEx
Accuracy
+/-1%
Housing Material
Aluminum
Display Type
Digital
Connection Type
NPT
Flow Range
2 to 35 gpm
Fluid Temp. Range
-40 Degrees to 176 Degrees F
Wetted Materials
Acetal, Gold, Nickle Plated Aluminum, Stainless Steel
Max. Viscosity
370 SUS
Type
Turbine
Flow Material
Biodiesel B100, Diesel, Flex Fuel E85, Gasoline, Jet Fuel, Lavatory Water, Mineral Spirits, Non-Potable Water
Flow Range @ GPH
120 to 2100
Rotor Type
Acetal
Max. Pressure
50 psi
Flow Range (GPM)
2 to 35
Accuracy (%)
+/-1
Flow Range (LPM)
8 to 132
Display Units
Gallons, Liters, Ounces, Pints, Quarts
Sensor Type
Reed Switch
Product Type
4-Digit Digital Fuel Transfer Meter
Mounting Orientation
Universal
Viscosity - Maximum
370 SUS
Operating Pressure - Maximum
50 psi
Includes Totalizer
Yes
Wetted Material
Acetal, Gold, Nickle Plated Aluminum, Stainless Steel
Includes Pressure Gauge
No
O-Ring Material
Buna-N
Includes Flow Rate Adjustment Knob
Yes
Voltage - Maximum
Battery
Flowmeter Type
Turbine
Seal Material
Buna-N, Viton
Pulse Rate
10 pulses/gal
Media Temperature - Maximum
176 Degrees F
Compatible Flow Material
B100, Diesel, E85, Fuels, Gasoline, Water
Rotor Material
Acetal
Flow Rate - Maximum
35 gpm
Shaft Material
Stainless Steel
Media Temperature - Minimum
-40 Degrees F
Unit Of Measure
Gallons
Flow Rate - Minimum
2 gpm

Description

Flowmeter, Product Type Fuel Meter, Flowmeter Type Turbine, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type NPT, Compatible Flow Material B100, Diesel, E85, Fuels, Gasoline, Water, Media Temperature - Maximum 176 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 370 SUS, Voltage - Maximum Battery, Housing Material Aluminum, Rotor Material Acetal, O-Ring Material Buna-N, Seal Material Buna-N, Viton, Shaft Material Stainless Steel

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
