Shop FILL-RITE

Fuel Transfer Pump, 12V DC, 10 gpm Max. Flow Rate , 1/5 HP, Cast Iron, 3/4 in Inlet

  • Mfr # FR1612
  • Zoro # G9791503
product price:
$
170.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
HP
1/5
Housing Material
Cast Iron
GPM
10 gpm
Inlet Size
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR1612
Zoro #
G9791503
UPC #
089404207918
Country of Origin
United States

Dimensions

Inlet Size
3/4 in
Power Cord Length
6 1/2 ft
Outlet Size
3/4 in
Pump Mount Size
2 in
Overall Height
5 in
Overall Width
3 3/4 in
Overall Length
7 in
Manufacturers Warranty Length
1 yr
Cord Length
6 1/2 ft
Height Above Container
5 in
For Container Size
35 gal, 55 gal, 100 gal
Adapter Connection Diameter
3/4 in
Wire Rope Length
7 in
Length
7 in

Details

Voltage
12V DC
HP
1/5
Housing Material
Cast Iron
GPM
10 gpm
Seal Material
HNBR
RPM
3800
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Bearing Type
Adjustable
Pressure Range
12 psi
Bypass Valve
Yes
Metered
No
Compatible Fluids
Antifreeze, Diesel
Duty Cycle
30 Minutes On/30 Minutes Off
Transfer Pump Application
Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
Adapter Material
Aluminum
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor Enclosure
Non-Explosion Proof
Agency Compliance
CE
Includes
Installation Components
Motor Type
Permanent Magnet
Motor RPM
4,000 RPM
Max. Head - Pumps
36 ft
Housing Material - Pumps
Cast Iron
Includes Suction Tube
No
Spout Material
Aluminum
Thermal Protection
No
Includes Bung Adapter
No
Max. Outlet Pressure
16 psi
Diesel Exhaust Fluid Compatible
No
Variable Speed
No
Mount Type
Foot
Explosion Proof
No
Includes Discharge Hose
No
Discharge Connection Type
Hose Barb
Runs Dry
Yes
Min. Fluid Temp.
-40 Degrees F
Max. Flow Rate
10 gpm
Adapter Connection Type
F Hose Barb
Motor HP
1/5 hp
Compatible Chemicals
Anti-Freeze, Diesel
Full Load Amps
17.0 A
Rated Voltage
12 V DC
Max. Head Pressure
50 psi
Includes Nozzle
No
For Media Type
Anti-Freeze, Diesel
Food Grade
No
Power Source
Corded Electric
Max. Fluid Temp.
105 Degrees F
Maximum Head Pressure
50 psi
Minimum Fluid Temperature
-40 Degrees F
Maximum Fluid Temperature
105 Degrees F
Container Type Included
Drum
Standards
CE
Pump Connection ID
3/4 in
Static Protection
No Grounding Line Included
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Flow Rate
10 gpm
Motor Speed
4,000 RPM
Motor Horsepower
1/5 hp
Maximum Viscosity
50 SUS
Pump Connection OD
1 1/8 in
Adapter Connection Standard
Hose Barb
Includes Follower Plate
No Follower Plate Included
Full Load Current
17 A
Chemical Compatibility
Antifreeze, Diesel
Meter Type Included
No Meter Included
Container Cover Type Included
No Cover Included
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Maximum Outlet Pressure
16 psi
Maximum Head
36 ft
For Container Type
Tank
Pump Technology
Vane
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

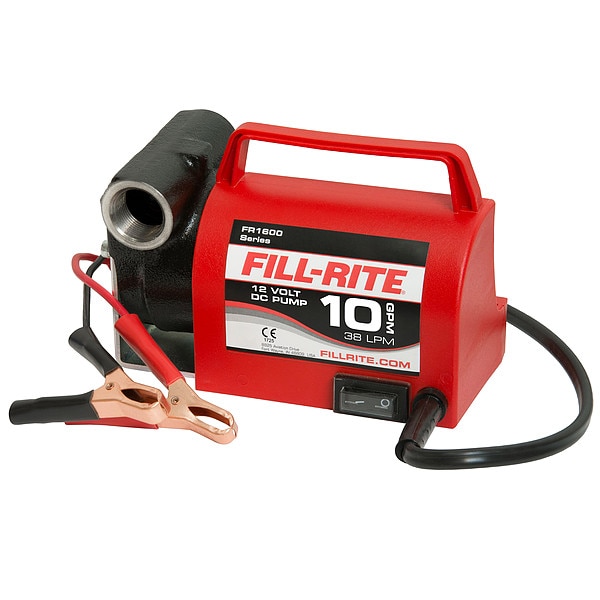

The FILL-RITE FR1612 is a 12V DC electric fuel transfer pump designed to move diesel or antifreeze at flow rates up to 10 GPM. It uses a rotary vane pump design and cast-iron housing, and it comes with installation components plus a factory-installed 6-1/2 ft power cord with battery cable and clips. This pump is self-priming, can run dry, and is intended for applications including agriculture, barrel mounting, construction, stationary installations, and tank use.

Key Features of the FILL-RITE FR1612 Fuel Transfer Pump:

  • 12V DC Power: Operates from a 12V DC electrical source.
  • Flow Rate: Transfers fuel or antifreeze at up to 10 GPM.
  • Compatible Fluids: Suitable for diesel and antifreeze.
  • Cast-Iron Housing: Cast-iron construction for pump housing.
  • Rotary Vane Design: Provides consistent transfer performance through rotary vane operation.
  • Self-Priming: Pump primes itself for startup.
  • Runs Dry: Can operate dry as listed in the product attributes.
  • Bypass Valve: Includes a bypass valve.
  • Duty Cycle: Rated for 30 minutes on and 30 minutes off.
  • Connections: 3/4 in inlet and 3/4 in outlet with hose barb discharge connection.
  • Compact Size: Measures 7 in L x 3-3/4 in W x 5 in H and weighs under 8 lb per manufacturer description.
  • Included Components: Includes installation components; discharge hose, nozzle, suction tube, and bung adapter are not included.
