Shop FILL-RITE

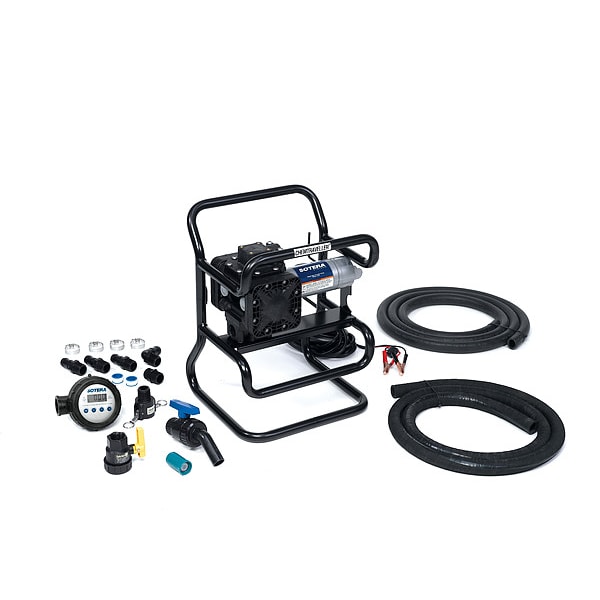

Fuel Transfer Pump, 12V DC, 13 gpm Max. Flow Rate , 1/4 HP, Polypropylene, 1 in NPT Inlet

  • Mfr # SS435BX700

  • Zoro # G4315976

product price:  $1,512.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SS435BX700
Zoro #
G4315976
UPC #
089404213063
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Pump Mount Size
2 in
Overall Length
8 3/4 in
Hose Dia.
1 in
Overall Height
6 1/4 in
Power Cord Length
20 ft
Manufacturers Warranty Length
5 yr
Overall Width
14 in
Outlet Size
1 in NPT
Hose Length
12 ft
Suction Tube Length
108 in
Cord Length
20 ft
Hose Outside Dia.
1 in
Spout Discharge Size
1 in
For Container Size
55 gal, 350 gal
Spout Length
3 1/2 in
Adapter Connection Diameter
2 in
Hose Inside Diameter
1 in
Hose Outside Diameter
1 3/8 in
Wire Rope Length
8 3/4 in

Details

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
Seal Material
EPDM
RPM
2600
Pump Design
Santoprene Diaphragm
Self-Priming
No
Seal Type
O-ring
Max. Viscosity
30 SUS
Item
Electric Drum Pump
Bearing Type
Ball
Pressure Range
15 psi
Includes
Fittings, EPDM Seals
Features
Automatically Goes Neutral, Glass-Reinforced Polypropylene Pump Housing, Spring Driven Configuration
Metered
Yes
Bypass Valve
No
Nozzle Material
Polypropylene
Duty Cycle
30 Minutes On/30 Minutes Off
Nozzle Type
Manual
For Use With
Fertilizers, Mild Acid, Pesticides, Water
Compatible Fluids
Fertilizers, Mild Acid, Pesticides, Water
Transfer Pump Application
Agriculture, Construction, Farming
Motor Type
Permanent Magnet
Housing Material - Pumps
Polypropylene
Motor RPM
2,600 RPM
Compatible Chemicals
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Nozzle Operation
Manual
Includes Nozzle
Yes
Suction Tube Material
EPDM
Hose Tube Material
EPDM
Thermal Protection
Yes
For Media Type
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Max. Outlet Pressure
15 psi
Max. Flow Rate
13 gpm
Power Source
Corded Electric
Includes Discharge Hose
Yes
Includes Suction Tube
Yes
Rated Voltage
12 V DC
Motor HP
1/4 hp
Maximum Outlet Pressure
15 psi
Motor Speed
2,600 RPM
Spout Material
Polypropylene
Discharge Connection Type
FNPT
Adapter Connection Standard
MNPT
Variable Speed
No
Suction Tube ID
1 in
Minimum Fluid Temperature
-40 Degrees F
Hose Cover Material
EPDM
Static Protection
No Grounding Line Included
Wetted Material
Buna-N/Santoprene/Stainless Steel
Includes Bung Adapter
Yes
Includes Spout
Yes
Pump Connection ID
1 in
Maximum Flow Rate
13 gpm
Pump Connection OD
1 3/8 in
For Container Type
Drum
Container Cover Type Included
No Cover Included
Meter Type Included
Digital
Pump Technology
Diaphragm
Maximum Head
37 ft
Meter Unit Of Measure
Gallons, Liters, Pints
Maximum Fluid Temperature
150 Degrees F
Container Type Included
Drum
Chemical Compatibility
Fertilizers, Herbicides, Pesticides, Water
Maximum Viscosity
30 SUS
Suction Tube OD
1 3/8 in
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Horsepower
1/4 hp
Includes Follower Plate
No Follower Plate Included
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Fertilizers, Mild Acid, Pesticides, Water, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 3/8 in, Hose Length 12 ft, Suction Tube Length 108 in, Cord Length 20 ft, Includes Bung Adapter Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source - TS Only Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming No
