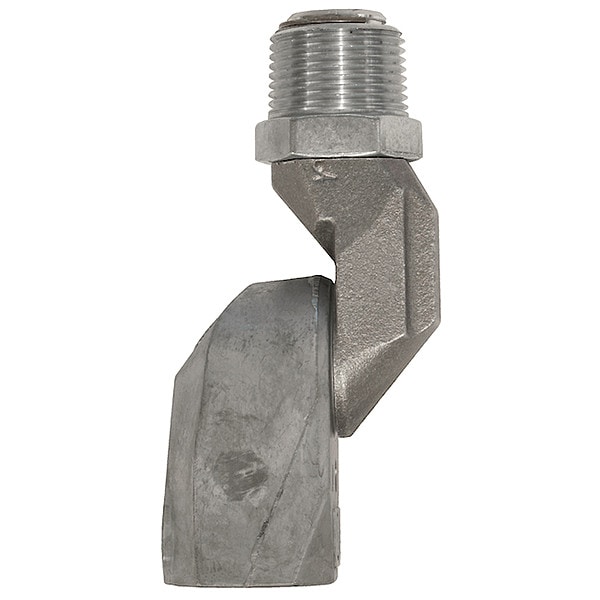

Swivel, Aluminum, 3/4 in, Female, NPT, 50psi

The FILL-RITE S075H1314 is a 3/4 in multi-plane hose swivel for fuel transfer systems. It is used with refined petroleum liquids and is designed for unleaded gasoline, diesel, kerosene, and ethanol blends. Installed in-line at the dispensing point, it allows the nozzle to move through a smooth range of motion while helping reduce hose twisting and kinking. This swivel has an aluminum body with aluminum and Buna-N wetted materials, 3/4 in NPT inlet and outlet connections, and a maximum operating pressure of 50 psi.

Key Features of the FILL-RITE S075H1314 Hose Swivel:

• Multi-plane swivel design: Allows the dispensing nozzle to rotate and move to different angles during fueling.
• 3/4 in NPT inlet and outlet: Matches fuel transfer hose and equipment connections with 3/4 in NPT fittings.
• For refined petroleum liquids: Intended for use with diesel, gasoline, kerosene, and ethanol blends.
• Aluminum construction: Housing and body material are aluminum.
• Buna-N wetted material: Internal wetted components include Buna-N and aluminum.
• 50 psi maximum operating pressure: Rated for systems operating up to 50 psi.
• Inline installation benefit: Helps reduce hose stress, twisting, and kinking while adding length to the hose assembly.
• Compatible Fill-Rite models: FR1204H, FR1210H, FR1210HA, FR604H, FR610H, FR700V, FR700VN, and FR701V.
• Size: 4 1/2 in overall length and 2 3/4 in diameter.
