Shop FILL-RITE

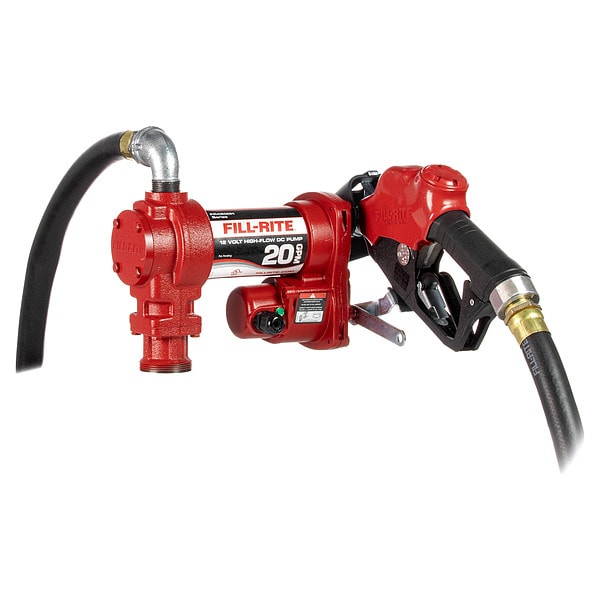

Fuel Transfer Pump, 12V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet

  • Mfr # FR4210HB

  • Zoro # G4316046

product price:
$
808.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR4210HB
Zoro #
G4316046
UPC #
089404223185
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Overall Length
11 in
Power Cord Length
20 ft
Outlet Size
1 in NPT
Hose Dia.
1 in
Overall Height
8 in
Pump Mount Size
2 in
Manufacturers Warranty Length
2 yr
Hose Length
12 ft
Overall Width
13 in
Suction Tube Length
34 1/2 in
Cord Length
18 ft
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Hose Outside Dia.
1 in
Adapter Connection Diameter
2 in
Spout Length
6 1/2 in
Hose Inside Diameter
1 in
Hose Outside Diameter
1 3/8 in
Spout Discharge Size
1 in
Wire Rope Length
11 in
Length
11 in

Details

Voltage
12V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Carbon
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
Nozzle Material
Aluminum
Nozzle Type
Automatic
Pressure Range
0 psi to 16 psi
Includes
Cable
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Bearing Type
Sealed Ball
Transfer Pump Application
Agriculture, Construction, Farming
Standards
cULus
Metered
No
Duty Cycle
30 Minutes On/30 Minutes Off
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Bypass Valve
Yes
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Agency Compliance
cULus
Motor Type
Permanent Magnet
Max. Head - Pumps
37 ft
Housing Material - Pumps
Cast Iron
Motor RPM
2,600 RPM
Runs Dry
Yes
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Nozzle Fluid Compatibility
Diesel
Max. Outlet Pressure
16 psi
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Thermal Protection
Yes
Nozzle Operation
Automatic
Power Source
Corded Electric
Pump Connection Type
NPT
Includes Discharge Hose
Yes
Motor HP
1/4 hp
Full Load Amps
28.0 A
Includes Nozzle
Yes
Discharge Connection Type
FNPT
Max. Head Pressure
16 psi
Mount Type
Bung
Includes Suction Tube
Yes
Rated Voltage
12 V DC
Max. Flow Rate
20 gpm
Hazardous Location Class
Class I/Division 1
Maximum Outlet Pressure
16 psi
Maximum Fluid Temperature
150 Degrees F
Motor Speed
2,600 RPM
Includes Follower Plate
No Follower Plate Included
Full Load Current
28 A
Hose Cover Material
Neoprene
Variable Speed
No
Static Protection
Grounding Line Included
Maximum Viscosity
39.5 SUS
Meter Type Included
No Meter Included
Maximum Head Pressure
16 psi
For Container Type
Tank
Hose Tube Material
Nitrile
Spout Material
Aluminum
Motor Horsepower
1/4 hp
Pump Technology
Vane
Container Type Included
Drum
Includes Spout
Yes
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Suction Tube OD
1 5/16 in
Includes Bung Adapter
Yes
Pump Connection ID
3/4 in
Minimum Fluid Temperature
-40 Degrees F
Maximum Flow Rate
20 gpm
Pump Connection OD
1 1/8 in
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Suction Tube Material
Steel
Maximum Head
37 ft
Suction Tube ID
1 3/16 in
Container Cover Type Included
No Cover Included
Adapter Connection Standard
MNPT
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes
