Shop FILL-RITE

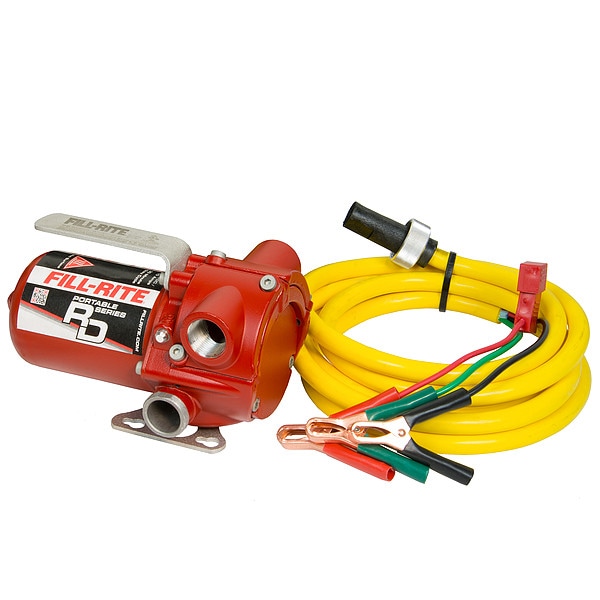

Fuel Transfer Pump, 12V DC, 8 gpm Max. Flow Rate , 1/5 HP, Cast Iron, 3/4 in MNPT Inlet

  • Mfr # RD812NN
  • Zoro # G0259071
product price:
$
354.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Tractor, Backhoe, Boat, Generator, or Virtually any Other Petroleum Powered Vehicle or Equipment; Ideal for Bunded Tank Applications
HP
1/5
Housing Material
Cast Iron
GPM
8 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RD812NN
Zoro #
G0259071
UPC #
089404224687
Country of Origin
United States

Dimensions

Inlet Size
3/4 in MNPT
Manufacturers Warranty Length
2 yr
Overall Length
8 in
Power Cord Length
10 ft
Outlet Size
3/4 in
Overall Width
5 in
Cord Length
10 ft
Height Above Container
4 1/8 in
For Container Size
35 gal, 55 gal, 100 gal
Adapter Connection Diameter
3/4 in
Wire Rope Length
8 in
Length
8 in

Details

Voltage
12V DC
Application
Tractor, Backhoe, Boat, Generator, or Virtually any Other Petroleum Powered Vehicle or Equipment; Ideal for Bunded Tank Applications
HP
1/5
Housing Material
Cast Iron
GPM
8 gpm
Seal Material
Buna-N
RPM
3600
Pump Design
Rotary Hinged Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Bearing Type
Sealed Ball
Duty Cycle
30 Minutes On/30 Minutes Off
Pressure Range
0 psi to 16 psi
Features
Explosion Proof Motor, Thermal Overload Protection
Metered
No
Standards
cULus
Nozzle Type
Manual
Includes
10 ft Power Cord with Battery Clips
Bypass Valve
Internal
Adapter Material
Cast Iron
Agency Compliance
cULus
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor Enclosure
Explosion Proof
Motor RPM
3,900 RPM
Housing Material - Pumps
Cast Iron
Max. Head - Pumps
3 ft
Max. Flow Rate
8 gpm
Max. Head Pressure
16 psi
Includes Suction Tube
No
Mount Type
Foot
Includes Discharge Hose
No
Power Source
Corded Electric
Motor HP
1/6 hp
Food Grade
No
Includes Nozzle
No
Diesel Exhaust Fluid Compatible
No
Explosion Proof
Yes
For Media Type
Biodiesel, Diesel, E15, Gasoline, Kerosene
Variable Speed
No
Discharge Connection Type
FNPT
Thermal Protection
Yes
Min. Fluid Temp.
-40 Degrees F
Adapter Connection Type
FNPT
Max. Fluid Temp.
150 Degrees F
Full Load Amps
14.0 A
Rated Voltage
12 V DC
Includes Bung Adapter
No
Includes Spout
No
Runs Dry
Yes
Max. Outlet Pressure
16 psi
Compatible Chemicals
Biodiesel, Diesel, E15, Gasoline, Kerosene
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Fluid Temperature
150 Degrees F
Static Protection
Grounding Line Included
Maximum Outlet Pressure
16 psi
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene
Full Load Current
14 A
Maximum Flow Rate
8 gpm
Minimum Fluid Temperature
-40 Degrees F
Maximum Head Pressure
16 psi
Hazardous Location Class
Class I/Division 1
Adapter Connection Standard
FNPT
For Container Type
Tank
Motor Speed
3,900 RPM
Pump Connection Type
NPT
Housing Finish
Powder Coated
Pump Technology
Vane
Maximum Head
3 ft
Maximum Viscosity
50 SUS
Container Type Included
Drum
Meter Type Included
No Meter Included
Includes Follower Plate
No Follower Plate Included
Motor Horsepower
1/6 hp
Pump Connection ID
5/8 in
Container Cover Type Included
No Cover Included
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 5/8 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Cord Length 10 ft, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Frequency (Hz) Not Applicable, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes
