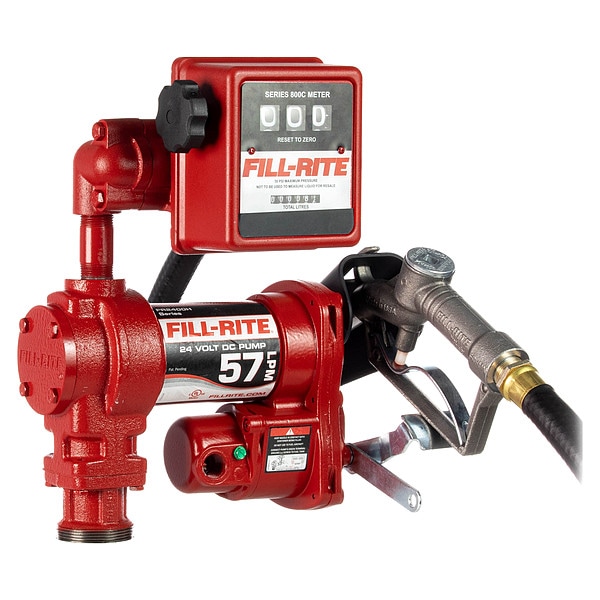

Fuel Transfer Pump, 24V DC, 15 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet

  • Mfr # FR2411HL
  • Zoro # G4315921
product price:
$
814.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V DC
Application
Farming; Construction
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR2411HL
Zoro #
G4315921
UPC #
089404223147
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Power Cord Length
18 ft
Outlet Size
3/4 in NPT
Suction Tube Length
34 1/2 in
Overall Height
12 in
Overall Width
13 in
Hose Dia.
3/4 in
Overall Length
11 in
Hose Length
12 ft
Pump Mount Size
2 in
Manufacturers Warranty Length
2 yr
Cord Length
18 ft
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Hose Outside Dia.
3/4 in
Spout Length
6 in
Hose Inside Diameter
3/4 in
Spout Discharge Size
3/4 in
Hose Outside Diameter
1 1/8 in
Adapter Connection Diameter
2 in
Wire Rope Length
11 in
Length
11 in

Details

Voltage
24V DC
Application
Farming; Construction
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
Seal Material
Carbon
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Pressure Range
0 psi to 16 psi
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Nozzle Type
Manual
Bearing Type
Sealed Ball
Standards
cULus
Includes
Cable
Metered
Yes
Bypass Valve
Yes
Nozzle Material
Aluminum
Transfer Pump Application
Agriculture, Construction, Farming
Duty Cycle
30 Minutes On/30 Minutes Off
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Agency Compliance
cULus
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor RPM
2,600 RPM
Housing Material - Pumps
Cast Iron
Max. Head - Pumps
37 ft
Rated Voltage
24 V DC
Power Source
Corded Electric
Discharge Connection Type
FNPT
Motor HP
1/4 hp
Meter Type
Mechanical
Includes Suction Tube
Yes
Full Load Amps
15.0 A
Max. Outlet Pressure
16 psi
Includes Nozzle
Yes
Meter Unit Of Measure
Liters
Includes Discharge Hose
Yes
Mount Type
Bung
Max. Head Pressure
16 psi
Runs Dry
Yes
Nozzle Operation
Manual
Max. Flow Rate
15 gpm
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Nozzle Fluid Compatibility
Diesel
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Pump Connection Type
NPT
Thermal Protection
Yes
Includes Follower Plate
No Follower Plate Included
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Suction Tube Material
Steel
Container Type Included
Drum
Pump Connection ID
3/4 in
Suction Tube OD
1 5/16 in
For Container Type
Tank
Maximum Viscosity
39.5 SUS
Adapter Connection Standard
MNPT
Maximum Head
37 ft
Maximum Head Pressure
16 psi
Includes Spout
Yes
Motor Speed
2,600 RPM
Maximum Flow Rate
15 gpm
Maximum Outlet Pressure
16 psi
Container Cover Type Included
No Cover Included
Hose Cover Material
Neoprene
Hose Tube Material
Nitrile
Hazardous Location Class
Class I/Division 1
Minimum Fluid Temperature
-40 Degrees F
Full Load Current
15 A
Spout Material
Aluminum
Pump Technology
Vane
Static Protection
Grounding Line Included
Includes Bung Adapter
Yes
Meter Type Included
Mechanical
Maximum Fluid Temperature
150 Degrees F
Suction Tube ID
1 3/16 in
Pump Connection OD
1 1/8 in
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Variable Speed
No
Motor Horsepower
1/4 hp
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 24 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes
