Shop FILL-RITE

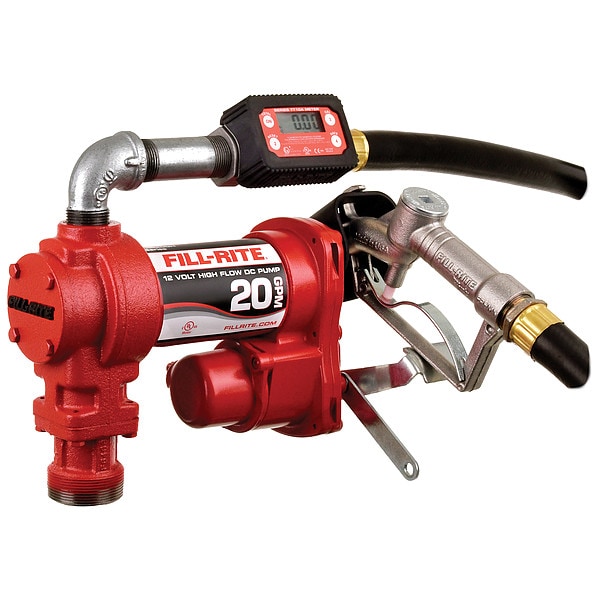

Fuel Transfer Pump, 12V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in FNPT Inlet

  • Mfr # FR4219H

  • Zoro # G1835403

product price:  $964.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Agriculture; Construction; Farming
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR4219H
Zoro #
G1835403
UPC #
089404245217
Country of Origin
United States

Dimensions

Inlet Size
1 in FNPT
Manufacturers Warranty Length
2 yr
Overall Length
13 in
Hose Dia.
1 in
Power Cord Length
18 ft
Overall Width
11 in
Overall Height
10 in
Outlet Size
3/4 in FNPT
Pump Mount Size
2 in
Suction Tube Length
34 1/2 in
Hose Length
12 ft
Cord Length
18 ft
Hose Outside Dia.
1 in
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Hose Inside Diameter
1 in
Hose Outside Diameter
1 3/8 in
Spout Discharge Size
1 in
Spout Length
6 in
Adapter Connection Diameter
2 in

Details

Voltage
12V DC
Application
Agriculture; Construction; Farming
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Carbon/Ceramic
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
Includes
Battery, Cable
Pressure Range
0 to 50 psi
Nozzle Material
Aluminum
Compatible Fluids
Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene
Features
Carbon Rotary Vane, In-Line Turbine Meter, Iron Rotor, Thermal Overload Protection
Bypass Valve
No
Duty Cycle
30 Minutes On/30 Minutes Off
Standards
cULus
Bearing Type
Sealed Ball
Nozzle Type
Manual
Metered
Yes
Transfer Pump Application
Agriculture, Construction, Farming
For Use With
Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Agency Compliance
cULus
Housing Material - Pumps
Cast Iron
Max. Head - Pumps
37 ft
Motor RPM
2,600 RPM
Nozzle Operation
Manual
Max. Flow Rate
20 gpm
Full Load Amps
28.0 A
Includes Suction Tube
Yes
Includes Nozzle
Yes
Rated Voltage
12 V DC
Pump Connection Type
NPT
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Runs Dry
Yes
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Max. Outlet Pressure
16 psi
Discharge Connection Type
FNPT
Power Source
Corded Electric
Max. Head Pressure
16 psi
Nozzle Fluid Compatibility
Diesel
Thermal Protection
Yes
Meter Type
Digital
Motor HP
1/4 hp
Mount Type
Bung
Meter Unit Of Measure
Gallons
Includes Discharge Hose
Yes
Suction Tube ID
1 3/16 in
Includes Follower Plate
No Follower Plate Included
Hazardous Location Class
Class I/Division 1
Minimum Fluid Temperature
-40 Degrees F
Container Type Included
Drum
Suction Tube OD
1 5/16 in
Pump Technology
Vane
Meter Type Included
Digital
Variable Speed
No
Maximum Fluid Temperature
150 Degrees F
Motor Speed
2,600 RPM
Hose Tube Material
Nitrile
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Spout Material
Aluminum
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Horsepower
1/4 hp
Maximum Viscosity
39.5 SUS
Includes Spout
Yes
Maximum Flow Rate
20 gpm
Container Cover Type Included
No Cover Included
Adapter Connection Standard
MNPT
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Static Protection
Grounding Line Included
Maximum Outlet Pressure
16 psi
Maximum Head Pressure
16 psi
Hose Cover Material
Neoprene
Full Load Current
28 A
Pump Connection OD
1 1/8 in
Pump Connection ID
3/4 in
For Container Type
Tank
Includes Bung Adapter
Yes
Suction Tube Material
Steel
Maximum Head
37 ft

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No
