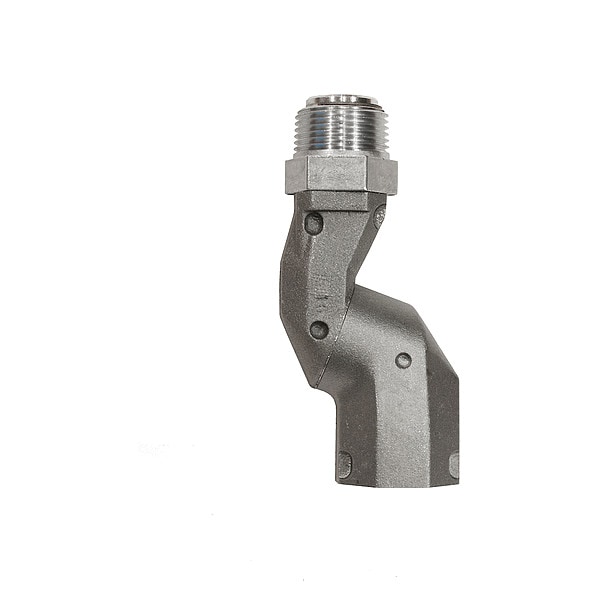

Fill-Rite Multi-Plane Swivel S100H1315 - main

Multi-Plane Swivel

  • Mfr # S100H1315

  • Zoro # G5351814

product price:  $86.89
/ea

Key Features

Inlet
1 in NPT
Length
5 in
Material
Aluminum
Max. Pressure
50 psi
Application
For Refined Petroleum Liquids
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S100H1315
Zoro #
G5351814
UPC #
089404223536
Country of Origin
United States

Dimensions

Length
5 in
Diameter
1 3/4 in
Outlet Connection Size
1 in
Inlet Connection Size
1 in
Inlet Diameter
1 in
Discharge Diameter
1 in

Details

Item
Swivel
Inlet
1 in NPT
Material
Aluminum
Max. Pressure
50 psi
Application
For Refined Petroleum Liquids
Includes
1" Multiplane Swivel
Housing Material
Aluminum
Outlet Connection Type
NPT
Compatible with Manufacturer Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible with Series
Fuel Pumps, Nozzles
Inlet Connection Type
NPT
Wetted Material
Aluminum/Fluorocarbon
Maximum Operating Pressure
50 psi
For Media Type
Diesel, Gasoline, Kerosene
Product Type
Swivel
Compatible with Brand
Fill-Rite
Compatible Manufacturer Part Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible Manufacturer Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
For Use With Mfr. Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible with Manufacturer Model No.
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible with Mfr. Model No.
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
For Use with Mfr Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible Pump Manufacturer Part Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible Mfr. Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Discharge Standard
NPT
Body Material
Aluminum
Chemical Compatibility
Diesel, Gasoline, Kerosene
Reconnectability
Non-Reconnectable
Compatible Brand
Fill-Rite
Discharge Gender
Male and Female
Inlet Gender
Female
Inlet Standard
NPT

Description

The FILL-RITE S100H1315 is a 1 in. multi-plane hose swivel used at the dispensing point of a fuel transfer system. It provides 360° nozzle movement to help reduce hose twisting and kinking during use. This swivel is designed for refined petroleum liquids, including diesel, gasoline, kerosene, and ethanol blends, and features aluminum construction with aluminum and Buna-N wetted materials.

Key Features of the FILL-RITE S100H1315 Hose Swivel:

  • Product Type: Multi-plane hose swivel for fuel transfer applications.
  • Connection Size: 1 in. NPT inlet and 1 in. NPT outlet for inline installation.
  • Rotation: 360° range of motion at the nozzle for flexible positioning while dispensing.
  • Material: Aluminum housing and body construction.
  • Wetted Materials: Aluminum and Buna-N.
  • Pressure Rating: Maximum operating pressure of 50 psi.
  • Size: 5 in. overall length and 1-3/4 in. diameter.
  • Application: For refined petroleum liquids.
  • Media Compatibility: For use with diesel, gasoline, and kerosene; manufacturer description also states compatibility with ethanol blends.
  • Compatibility: For use with select Fill-Rite fuel pumps and nozzles, including models FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, and NX25-DDCNF-AA.
