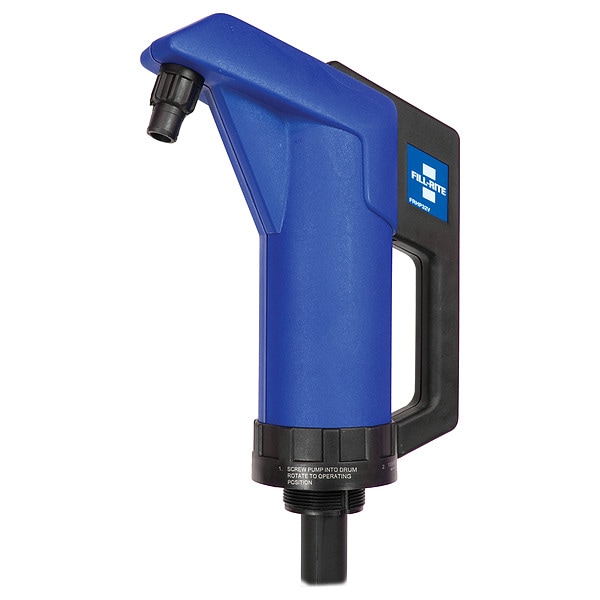

Piston Drum Pump, Polypropylene, 3/4In, DEF

  • Zoro #: G0867815
  • Mfr #: FRHP32V
$73.99
  • Manufacturers Warranty Length: 1 yr.
  • Adapter Type: Bung
  • Includes: Telescoping Suction Tube
See full product details
Orders over $75 ship free.

Fill-Rite #FRHP32V Specifications

  • Zoro #: G0867815
  • Mfr #: FRHP32V
Manufacturers Warranty Length: 1 yr. Adapter Type: Bung
Includes: Telescoping Suction Tube Adapter Material: Polypropylene
Outlet Size: 3/4" FNPT Housing Material: Polypropylene
Max. Viscosity: 50 SUS Type: Piston Action
Max. Liquid Temp.: 120 Degrees F Wetted Materials: Fluorocarbon, Polypropylene
Inlet Size: 1" NPT Item: Hand Operated Drum Pump
Action Type: Lever Max. Temp.: 120 Degrees F
Pump Body Material: Polypropylene Max. Pressure: 50 psi
Overall Length: 35-1/2" GPM: 11 oz. Per Stroke
Application: DEF, Solvents, Cleaners, Degreasers, Deionized Water, Caustics, AUS32 Max. Head: 115 ft.
Adapter Dia.: 2" For Use With: AUS32, Caustics, Cleaners, DEF, Degreasers, Deionized Water, Solvents
Suction Tube Length: 19-3/4 in to 35-1/2 in pH Range: 3.6 to 11.9
Features: Piston lever pump w/ 2 in NPT inlet Seal Material: VITON
Metered: No Suction Tube Material: Polypropylene
Self-Priming: Yes Piston Material: Polypropylene
Includes Bung Adapter: Yes Pump Connection OD: 2 1/8 in
Bung Connection Dia.: 2 in Max. Fluid Temp.: 120 Degrees F
Pump Connection ID: 2 in For Media Type: Antifreeze, Automatic Transmission Fluid, Brake Fluid, DEF, Ethylene Glycol, Fertilizers, Glycerin, Motor Oil, Windshield Washer Fluid
Discharge Tube Outlet ID: 3/4 in Suction Tube OD: 7/8 in
Max. Head Pressure: 50 psi Includes Suction Tube: Yes
Min. Operating Temp.: 0 Degrees F Max. Flow Rate: 11 oz per stroke
For Container Size: 55 gal Spout Connection Size: 3/4 in
Height Above Container: 13 in Max. Head - Pumps: 6 ft
Includes Discharge Hose: No Includes Spout: Yes
Discharge Connection Type: Hose Barb For Container Type: Drum
Runs Dry: Yes Includes Nozzle: No
Suction Tube ID: 3/4 in Max. Oil Flow: 11 oz per stroke
Compatible Chemicals: Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, DEF, Ethylene Glycol, Fertilizers, Glycerin, Motor Oil, Windshield Washer Fluid Spout Material: Polypropylene
Diesel Exhaust Fluid Compatible: Yes Power Source: Hand Operated
Housing Material - Pumps: Polypropylene Not Recommended Chemicals: Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Biodiesel, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formic Acid, Fresh Water, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Food Grade: No Spout Length: 1 in
Discharge Tube Outlet OD: 7/8 in Max. Outlet Pressure: 50 psi
Adapter Connection Type: MNPT Gear Lube: NT
Grease: NT Country of Origin (subject to change): United Kingdom
Feedback Help us improve our product information

Description

Hand Operated Drum Pump, Action Type Piston, Pump Body Material Polypropylene, Wetted Materials Fluorocarbon, Polypropylene, pH Range 3.6 to 11.9, Seal Material VITON, Piston Material Polypropylene, For Use On Drums, Totes and Barrels, GPM 11 oz. Per Stroke, Maximum Head 115 ft., Max. Pressure 50 psi, Max. Temp. 120 Degrees F, Max. Viscosity 50 SUS, Inlet Size 1 In. NPT, Outlet Size 3/4 In. FNPT, Suction Tube Length 19-3/4 in to 35-1/2 in, Overall Length 35-1/2 In., Metered No, Adapter Type Bung
