Shop FILL-RITE

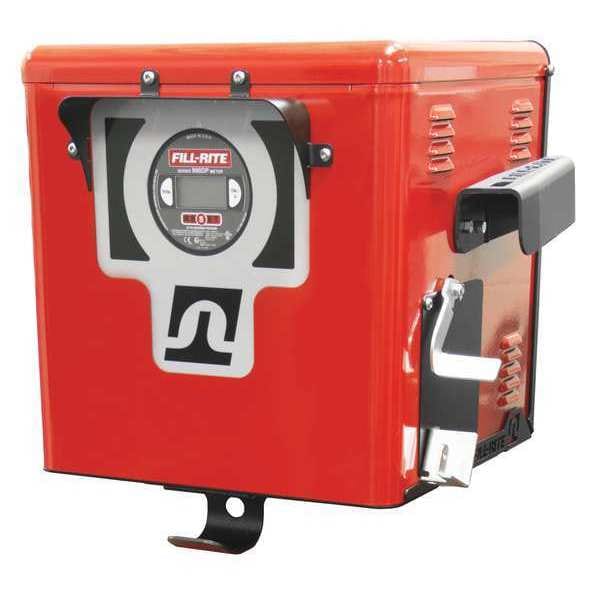

RemoteFuelDispenser, 40gpm, 1inInlet

  • Mfr # FR902DPU

  • Zoro # G4315626

product price:
$
3,584.99
/ea
Free Shipping & Returns

Key Features

Type
Liquid
Housing Material
Steel
For Pipe Size
1 in
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Connection Size
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FR902DPU
Zoro #
G4315626
UPC #
089404224489
Country of Origin
United States
Item
Remote Fuel Dispenser
Type
Liquid
Housing Material
Steel
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Connection Type
FNPT
Max. Pressure
50 psi
Max. Viscosity
50 SUS
Wetted Materials
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Flow Range
6 to 40 gpm
Fluid Temp. Range
-40 Degrees to 140 Degrees F
Fitting
Brass
Seal Material
Buna N
Max. Pressure (PSI)
50
Master Totalizer
999,999 gal
Agency Compliance
UL Listed
Pressure Drop - 50% Flow (PSI)
7.0 psi
Chamber Material
Polypropylene
GPM Max.
40 gpm
Flow Range (GPM)
6 to 40
Resetable Cumulative Totalizer
9,999 gal
Output
Pulse
Pressure Drop - 100% Flow (PSI)
19.0 psi
Application
Agriculture, Construction, Industrial, Mining, Municipalities
Thread
NPT
Pulses per Gallon
10 pulses/gal
Max. Viscosity (SSU)
50
O-Ring
Buna
Flow Range @ GPM/LPM
6 to 40 / 23 to 150
Flow Range @ GPH
360 to 2400
Display
Mechanical
Max. Temp. (F)
130
Accuracy (%)
+/-2
Operating Pressure - Maximum
50 psi
Inlet Type
NPT
Includes Nozzle
Yes
Nameplate Voltage
250V AC
Flow Rate - Minimum
6 gpm
Viscosity - Maximum
50 SUS
Meter Unit Of Measure
Gallons
Meter Type Included
Digital
Outlet Type
NPT
Standards
cULus
Mount Type
Pedestal
Includes
900CD Digital Meter, Solenoid Valve, Hammer Arrester, Remote On/Off Switch
Flow Rate - Maximum
40 gpm
Meter Display Digits
4
Meter Accuracy
+/-1.25%
Chemical Compatibility
Diesel, Gasoline
Current
16 A

Description

Flowmeter, Liquid, GPM Max. 40, Max. Pressure (PSI) 50, Connection Size (In.) 1 NPT, Max. Temp. (F) 130, Length (In.) 27-1/2, Width (In.) 19, Height (In.) 20-1/2, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 40 gpm, Display Mechanical, Resetable Cumulative Totalizer 9999 Gallons, Max. Viscosity 50 SSU, Max. Viscosity (SSU) 50, For Pipe Size 1 In.
