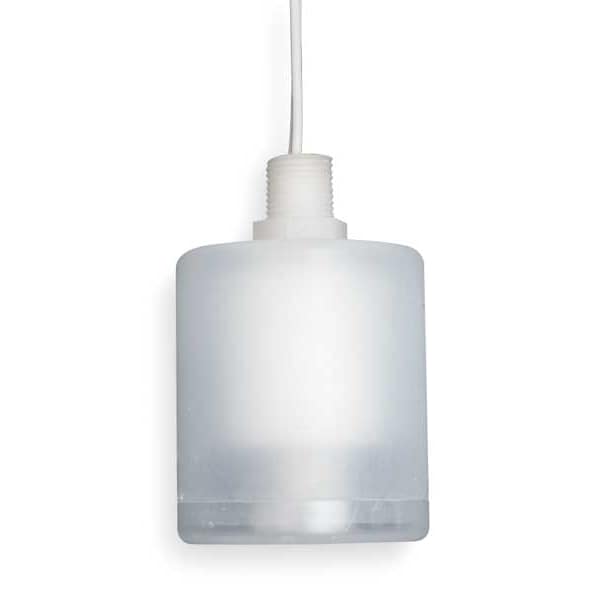

SPST Liquid Level Switch Selectable 240VAC 100 psi

  • Mfr # MS8000

  • Zoro # G2916313

product price:  $22.39
/ea

Key Features

Voltage
240VAC
Max. Pressure
100 psi
Mounting
Vertical Open Tank
Max. Voltage
240 V
Tank Connection Size
1/8 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MS8000
Zoro #
G2916313
UPC #
-
Country of Origin
United States

Dimensions

Tank Connection Size
1/8 in NPT
Float Dia.
1.0 in
Height
2.25 in
Stem Length
1.63 in
Conduit Size
1/8 in
Float Length
1 in
Width
2.25 in
Overall Length
2.25 in
Overall Height
2.25 in
Overall Width
2.25 in
Stem Thread Size
1/8 in NPT
Float Diameter
1.5 in

Details

Voltage
240VAC
Max. Pressure
100 psi
Item
Alternator Closed Liquid Level Switch
Mounting
Vertical Open Tank
Max. Voltage
240 V
Float Specific Gravity
0.8
Max. Current
0.28 A
Switch Function
Selectable
Operating Temp. Range
221 Degrees F Max
Float Switch Contact Form
SPST
Contact Form
SPST
Float Material
Polypropylene
VA Rating
30
Stem Material
Polypropylene
Float Switch Float Material
Polypropylene
Standards
CE, CSA, UL Listed
Electrical Connections
22 AWG PTFE Coated 24 in Leads
Body Material
Polypropylene
Series
MS8000
Float Rod Angle
Vertical
Mounting Style
Vertical
Minimum Media Specific Gravity
1
Voltage Rating - Maximum
120 V AC, 240 V AC
Electrical Connection
Pre-Wired Cable
Proof Pressure
100 psi
Operating Temperature - Maximum
221 Degrees F
Current Rating - Maximum
0.28 A
Product Type
Closed Liquid Level Switch
Switch Structure
SPST

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 1/8 in NPT, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max, Overall Length 2.25 in, Float Material Polypropylene, Float Length 1 in, Float Dia. 1.0 in, Stem Material Polypropylene, Stem Length 1.63 in, Height 2.25 in, Width 2.25 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Polypropylene, Float Rod Angle Vertical
