Shop FILL-RITE

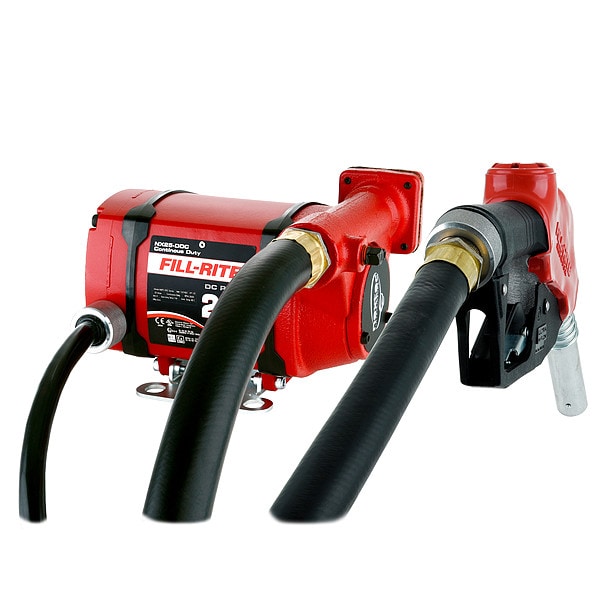

Fuel Transfer Pump, 12 to 24V DC, 25 gpm Max. Flow Rate , 1/3 HP, Cast Iron, 1-1/4 in FNPT Inlet

  • Mfr # NX25-DDCNF-AA

  • Zoro # G2109088

product price:
$
1,536.99
/ea
Free Shipping & Returns

Key Features

Voltage
12 to 24V DC
Application
Agriculture; Barrel Mounting; Construction; Stationary Installations; Tank
HP
1/3
Housing Material
Cast Iron
GPM
25 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NX25-DDCNF-AA
Zoro #
G2109088
UPC #
089404245491
Country of Origin
United States

Dimensions

Inlet Size
1-1/4 in FNPT
Pump Mount Size
2 in
Overall Width
13 in
Hose Dia.
1 in
Hose Length
18 ft
Power Cord Length
20 ft
Manufacturers Warranty Length
2 yr
Overall Length
10 in
Outlet Size
1 in FNPT
Overall Height
9 1/2 in
Cord Length
20 ft
For Container Size
55 gal, 275 gal, 500 gal, 5,000 gal
Hose Outside Dia.
1 in
Hose Outside Diameter
1 3/8 in
Spout Discharge Size
1 in
Hose Inside Diameter
1 in
Adapter Connection Diameter
2 in
Spout Length
6 1/2 in
Wire Rope Length
10 in
Length
10 in

Details

Voltage
12 to 24V DC
Application
Agriculture; Barrel Mounting; Construction; Stationary Installations; Tank
HP
1/3
Housing Material
Cast Iron
GPM
25 gpm
Seal Material
Buna-N
RPM
3500/400
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
200 SUS
Item
Electric Drum Pump
Duty Cycle
Continuous
Bearing Type
Ball
Pressure Range
0 to 21 psi
Includes
Alligator Clips, Cable, Cable Gauge
Compatible Fluids
Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits
Features
Automatic Power Down, High Flow Rates, Improved Suction Lift, Intelligent Tones, Light Weight, Low Amp Draw, Magnetic Replaceable Switch, Removable Power Cord
Nozzle Material
Buna- N
Metered
No
Standards
ATEX, CE, cULus, IECEx
Transfer Pump Application
Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
Nozzle Type
Automatic
For Use With
Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits
Bypass Valve
Yes
Motor Type
Permanent Magnet
Agency Compliance
ATEX, CE, cULus, IECEx
Max. Head - Pumps
48 ft
Motor RPM
8.75 RPM
Housing Material - Pumps
Cast Iron
For Media Type
Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits
Mount Type
Foot
Nozzle Operation
Automatic
Max. Outlet Pressure
21 psi
Compatible Chemicals
Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits
Full Load Amps
30.0 A
Max. Flow Rate
25 gpm
Rated Voltage
24 V DC
Nozzle Fluid Compatibility
Diesel
Includes Discharge Hose
Yes
Motor HP
1/3 hp
Max. Head Pressure
25 psi
Includes Nozzle
Yes
Phase
Single
Discharge Connection Type
FNPT
Variable Speed
No
Full Load Current
30 A
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Head
48 ft
Maximum Viscosity
200 SUS
Container Cover Type Included
No Cover Included
Pump Connection OD
1 3/8 in
Static Protection
No Grounding Line Included
Maximum Head Pressure
25 psi
Includes Follower Plate
No Follower Plate Included
Meter Type Included
No Meter Included
Includes Suction Tube
No
For Container Type
Tank
Pump Connection ID
1 in
Hose Tube Material
Nitrile
Maximum Outlet Pressure
21 psi
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Pump Technology
Vane
Hose Cover Material
Neoprene
Chemical Compatibility
Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits
Spout Material
Aluminum
Motor Horsepower
1/3 hp
Includes Spout
No
Hazardous Location Class
Class I/Division 1
Maximum Fluid Temperature
150 Degrees F
Includes Bung Adapter
No
Minimum Fluid Temperature
-40 Degrees F
Power Source
Corded Electric
Maximum Flow Rate
25 gpm
Container Type Included
Drum
Motor Speed
8.75 RPM
Adapter Connection Standard
MNPT
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 25 psi, Max. Outlet Pressure 21 psi, For Use With Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits, Rated Voltage 24 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length 18 ft, Suction Tube Length Not Applicable, Cord Length 20 ft, Includes Bung Adapter No, Nozzle Operation Automatic, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes

Restrictions

Hazardous material
