Shop FINISH THOMPSON

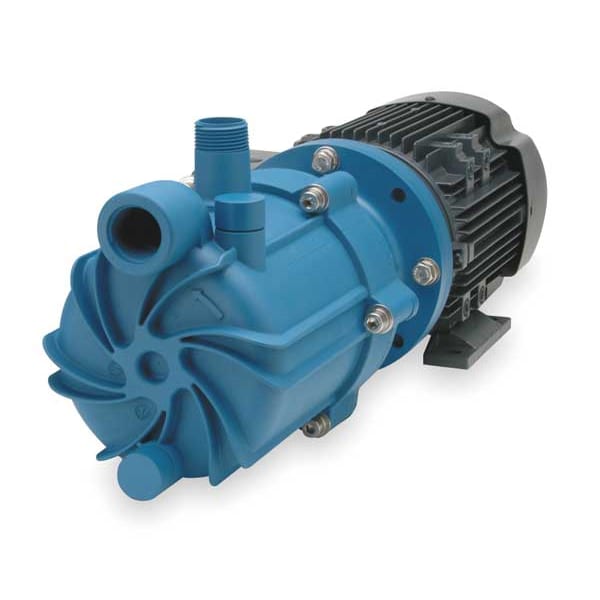

1 HP PP Magnetic Drive Pump 208-230/460V 1" FNPT

  • Mfr # SP10P-3-M219

  • Zoro # G2007783

product price:  $1,774.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Voltage
208-230/460
Inlet
1 in FNPT
Outlet
1 in MNPT
Max. Head
50 ft
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SP10P-3-M219
Zoro #
G2007783
UPC #
-
Country of Origin
United States

Dimensions

Length
22 3/32 in
Width
7 1/2 in
Height
8 1/2 in
Discharge Pipe Size
1 in
Overall Length
22.1 in
Manufacturers Warranty Length
5 yr
Overall Height
8.5 in
Overall Width
7.5 in
Intake Pipe Size
1 in
Impeller Diameter
3 3/4 in
Discharge Diameter
1 in
Inlet Diameter
1 in

Details

Item
Magnetic Drive Pump
HP
1 hp
Voltage
208-230/460
Inlet
1 in FNPT
Outlet
1 in MNPT
Max. Head
50 ft
Operating Pressure
21.6 psi
Housing Material
Polypropylene
GPM of Water @ 40 Ft. of Head
32 gpm
GPM of Water @ 3 Ft. of Head
55 gpm
Application
Highly Corrosive Chemicals
Mounting
Horizontal
Gasket Material
FKM
Design
Centrifugal
GPM of Water @ 18 Ft. of Head
52 gpm
GPM of Water @ 24 Ft. of Head
46 gpm
Max. Viscosity
50 CPS
GPM of Water @ 15 Ft. of Head
55 gpm
Bearing Type
Radial, Thrust
GPM of Water @ 6 Ft. of Head
55 gpm
GPM of Water @ 50 Ft. of Head
4 gpm
Max. Specific Gravity
1.2
Full Load Amps
2.96-2.80/1.40 A
GPM of Water @ 9 Ft. of Head
55 gpm
Series
SP10
Impeller Material
Polypropylene
Motor Type
Induction
Motor Enclosure
Totally Enclosed Fan Cooled
Flow Rate @ 40 ft of Head (Maximum)
32 gpm
Phase
Three
Flow Rate @ 3 ft of Head (Maximum)
55 gpm
Flow Rate @ 6 ft of Head (Maximum)
55 gpm
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 24 ft of Head (Maximum)
46 gpm
Flow Rate @ 15 ft of Head (Maximum)
55 gpm
Priming
Self-Priming
Chemical Compatibility
Flow Rate @ 50 ft of Head (Maximum)
4 gpm
Horsepower (Maximum)
1 hp
Full Load Current
3.4-3.0/1.5A
Flow Rate @ 18 ft of Head (Maximum)
52 gpm
Viscosity (Maximum)
50 cps
Media Temperature (Maximum)
180 Degrees F
Flow Rate @ 9 ft of Head (Maximum)
55 gpm
Mounting Orientation
Horizontal
Intake Pipe Type
FNPT
Discharge Pipe Type
MNPT
Motor Mounting Type
Horizontal
Specific Gravity (Maximum)
1.8
Feet of Head (Maximum)
50 ft
Operating Pressure (Maximum)
21.6 psi
Nameplate Voltage
208-230/460V AC
Ambient Temperature - Minimum
32 Degrees F
Case Pressure - Maximum
80 psi
Pumping Application
Chemical Transfer, Liquid Transfer
Pump Drive Configuration
Close-Coupled
Shut Off Pressure - Maximum
21.6 psi
Media Temperature - Minimum
35 Degrees F
NPSHr
11 ft
Motor Design
Three-Phase
Pump Mounting Style
Base-Mounted, Foot-Mounted
Best Efficiency Flow
32 gpm
Drive Coupling Type
Magnetic Coupling
Best Efficiency Head
40 ft
Hazardous Location Class
Class I Division 2
Media Temperature - Maximum
180 Degrees F
Number of Stages
1
Shaft Seal Type
Sealless
Flow Rate (Maximum)
55 gpm
Discharge Rotation Increments
0 Degrees
Ambient Temperature - Maximum
180 Degrees F
Pump Design
End Suction

Description

Magnetic Drive Pump, Chemical Compatibility Deionized Water, Discharge Pipe Size 1 in, Discharge Pipe Type MNPT, Feet of Head (Maximum) 63 ft, Flow Rate @ 3 ft of Head (Maximum) 55 gpm, Flow Rate @ 6 ft of Head (Maximum) 55 gpm, Flow Rate @ 9 ft of Head (Maximum) 55 gpm, Flow Rate @ 15 ft of Head (Maximum) 55 gpm, Flow Rate @ 24 ft of Head (Maximum) 46 gpm, Flow Rate @ 50 ft of Head (Maximum) 4 gpm, Horsepower (Maximum) 1 hp, Intake Pipe Size 1 in, Intake Pipe Type FNPT

Restrictions

Hazardous material
