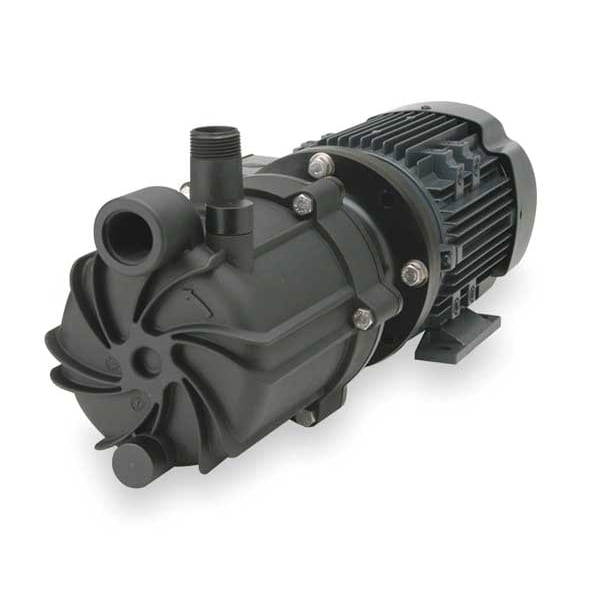

1 HP PVDF Magnetic Drive Pump 115/208-230V 1" FNPT

  • Mfr # SP10V-3-M218

  • Zoro # G1482896

product price:  $2,892.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Voltage
115/208-230
Inlet
1 in FNPT
Outlet
1 in MNPT
Max. Head
50 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SP10V-3-M218
Zoro #
G1482896
UPC #
-
Country of Origin
United States

Dimensions

Length
22 3/32 in
Width
7 1/2 in
Height
8 1/2 in
Overall Width
7.5 in
Intake Pipe Size
1 in
Manufacturers Warranty Length
5 yr
Overall Length
22.1 in
Discharge Pipe Size
1 in
Overall Height
8.5 in
Impeller Diameter
3 3/4 in
Inlet Diameter
1 in
Discharge Diameter
1 in

Details

Item
Magnetic Drive Pump
HP
1 hp
Voltage
115/208-230
Inlet
1 in FNPT
Outlet
1 in MNPT
Max. Head
50 ft
Operating Pressure
21.6 psi
Housing Material
PVDF
Impeller Material
PVDF
GPM of Water @ 9 Ft. of Head
55 gpm
Bearing Type
Radial, Thrust
Motor Enclosure
Totally Enclosed Fan Cooled
Motor Type
Induction
GPM of Water @ 3 Ft. of Head
55 gpm
GPM of Water @ 6 Ft. of Head
55 gpm
Max. Specific Gravity
1.2
GPM of Water @ 18 Ft. of Head
52 gpm
GPM of Water @ 50 Ft. of Head
4 gpm
Full Load Amps
12.8/6.40-6.40
Gasket Material
FKM
GPM of Water @ 24 Ft. of Head
46 gpm
GPM of Water @ 15 Ft. of Head
55 gpm
Application
Highly Corrosive Chemicals
Max. Viscosity
50 CPS
Mounting
Horizontal
Series
SP10
Design
Centrifugal
GPM of Water @ 40 Ft. of Head
32 gpm
Feet of Head (Maximum)
50 ft
Discharge Pipe Type
MNPT
Mounting Orientation
Horizontal
Flow Rate @ 18 ft of Head (Maximum)
52 gpm
Priming
Self-Priming
Motor Speed (Maximum)
3,450 RPM
Viscosity (Maximum)
50 cps
Flow Rate @ 24 ft of Head (Maximum)
46 gpm
Nameplate Voltage
115/208-230V AC
Flow Rate @ 15 ft of Head (Maximum)
55 gpm
Flow Rate @ 50 ft of Head (Maximum)
4 gpm
Flow Rate @ 40 ft of Head (Maximum)
32 gpm
Media Temperature (Maximum)
220 Degrees F
Specific Gravity (Maximum)
1.8
Phase
Single
Operating Pressure (Maximum)
21.6 psi
Chemical Compatibility
Intake Pipe Type
FNPT
Flow Rate @ 6 ft of Head (Maximum)
55 gpm
Motor Mounting Type
Horizontal
Full Load Current
10.1/5.64-5.06A
Flow Rate @ 3 ft of Head (Maximum)
55 gpm
Flow Rate @ 9 ft of Head (Maximum)
55 gpm
Horsepower (Maximum)
1 hp
Discharge Rotation Increments
0 Degrees
Best Efficiency Flow
32 gpm
Number of Stages
1
Best Efficiency Head
40 ft
Motor Design
Capacitor-Start/Run
Media Temperature - Minimum
35 Degrees F
Shut Off Pressure - Maximum
21.6 psi
Ambient Temperature - Maximum
220 Degrees F
Drive Coupling Type
Magnetic Coupling
Pump Mounting Style
Base-Mounted, Foot-Mounted
Pump Design
End Suction
Pump Drive Configuration
Close-Coupled
Flow Rate (Maximum)
55 gpm
Pumping Application
Chemical Transfer, Liquid Transfer
Shaft Seal Type
Sealless
Hazardous Location Class
Not Rated
Case Pressure - Maximum
80 psi
Ambient Temperature - Minimum
-20 Degrees F
Media Temperature - Maximum
220 Degrees F
NPSHr
11 ft of head

Description

Magnetic Drive Pump

Restrictions

Hazardous material
