Shop FINISH THOMPSON

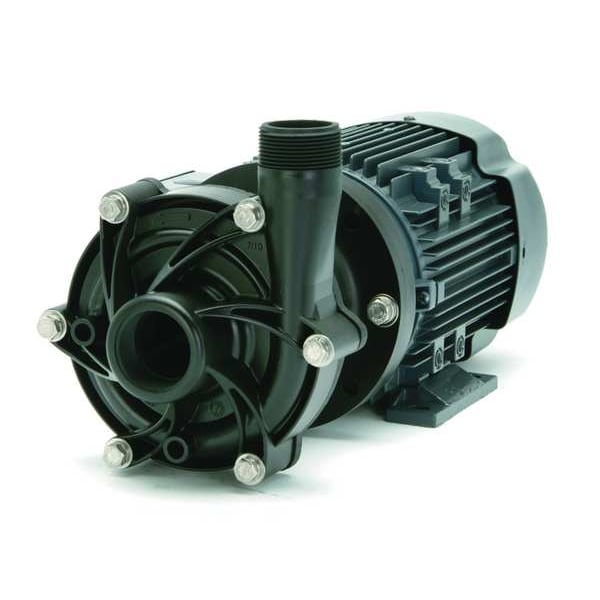

3/4 HP PVDF Magnetic Drive Pump 208-230/460V 1-1/2" FNPT

  • Mfr # DB7V-T-M205

  • Zoro # G0577491

product price:
$
1,298.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Voltage
208-230/460
Inlet
1-1/2 in FNPT
Outlet
1-1/2 in MNPT
Max. Head
33 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DB7V-T-M205
Zoro #
G0577491
UPC #
-
Country of Origin
United States

Dimensions

Length
17.3 in
Width
7 1/2 in
Height
8 19/64 in
Intake Pipe Size
1 1/2 in
Overall Length
17.3 in
Manufacturers Warranty Length
5 yr
Overall Height
8.3 in
Overall Width
7.5 in
Discharge Pipe Size
1 1/2 in
Impeller Diameter
3 9/50 in
Discharge Diameter
1 1/2 in
Inlet Diameter
1 1/2 in
Wire Rope Length
17.3 in

Details

Item
Magnetic Drive Pump
HP
3/4 hp
Voltage
208-230/460
Inlet
1-1/2 in FNPT
Outlet
1-1/2 in MNPT
Max. Head
33 ft
Operating Pressure
14.2 psi
Housing Material
PVDF
Impeller Material
PVDF
GPM of Water @ 3 Ft. of Head
69 gpm
Full Load Amps
2.4-2.3/1.15 A
Application
Acids, DI Water, Plating Solutions, Sodium Hypochlorite
Design
Centrifugal
Mounting
Horizontal
Motor Type
Induction
Motor Enclosure
Totally Enclosed Fan Cooled
Max. Specific Gravity
1.6
GPM of Water @ 15 Ft. of Head
64 gpm
GPM of Water @ 24 Ft. of Head
50 gpm
Bearing Type
Radial, Thrust
GPM of Water @ 18 Ft. of Head
58 gpm
Gasket Material
FKM
GPM of Water @ 9 Ft. of Head
69 gpm
Series
DB7
GPM of Water @ 6 Ft. of Head
69 gpm
Max. Viscosity
100 cps
Chemical Compatibility
Flow Rate @ 9 ft of Head (Maximum)
69 gpm
Intake Pipe Type
FNPT
Motor Speed (Maximum)
3,450 RPM
Viscosity (Maximum)
150 cps
Discharge Pipe Type
MNPT
Flow Rate @ 24 ft of Head (Maximum)
50 gpm
Priming
Manual
Media Temperature (Maximum)
220 Degrees F
Specific Gravity (Maximum)
1.8
Flow Rate @ 6 ft of Head (Maximum)
69 gpm
Phase
Three
Operating Pressure (Maximum)
14.2 psi
Flow Rate @ 3 ft of Head (Maximum)
69 gpm
Full Load Current
2.5-2.26/1.13A
Flow Rate @ 18 ft of Head (Maximum)
58 gpm
Nameplate Voltage
208-230/460V AC
Mounting Orientation
Horizontal
Motor Mounting Type
Horizontal
Feet of Head (Maximum)
33 ft
Horsepower (Maximum)
3/4 hp
Flow Rate @ 15 ft of Head (Maximum)
64 gpm
Discharge Rotation Increments
0 Degrees
Hazardous Location Class
Class I Division 2
Media Temperature - Minimum
35 Degrees F
Ambient Temperature - Maximum
220 Degrees F
Case Pressure - Maximum
80 psi
Media Temperature - Maximum
220 Degrees F
Best Efficiency Head
27 ft
Flow Rate (Maximum)
68 gpm
Shaft Seal Type
Sealless
Drive Coupling Type
Magnetic Coupling
Ambient Temperature - Minimum
-20 Degrees F
Pump Mounting Style
Base-Mounted, Foot-Mounted
Best Efficiency Flow
45 gpm
Pumping Application
Chemical Transfer, Liquid Transfer
Shut Off Pressure - Maximum
14.2 psi
NPSHr
9 ft
Motor Design
Three-Phase
Pump Drive Configuration
Close-Coupled
Pump Design
End Suction
Number of Stages
1

Description

Magnetic Drive Pump

Restrictions

Hazardous material
