Shop FINISH THOMPSON

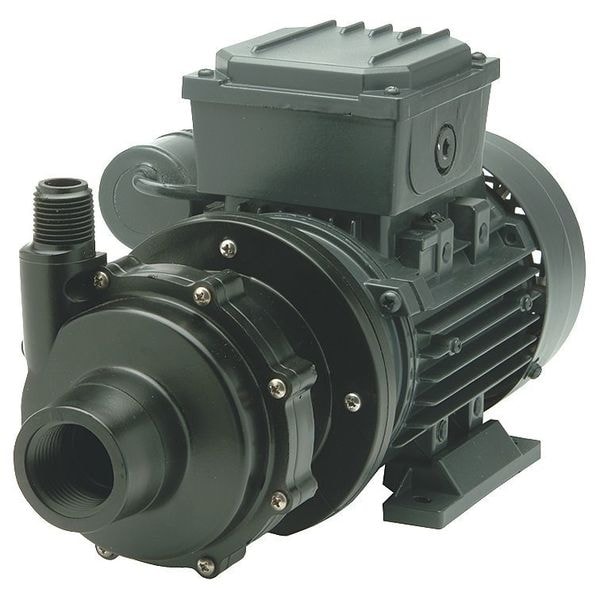

1/4 HP PVDF Magnetic Drive Pump 115V 1" FNPT

  • Mfr # DB5V-T-M613

  • Zoro # G2064982

product price:
$
654.99
/ea
Free Shipping & Returns

Key Features

HP
1/4 hp
Voltage
115
Inlet
1 in FNPT
Outlet
1/2 in MNPT
Max. Head
35 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DB5V-T-M613
Zoro #
G2064982
UPC #
-
Country of Origin
United States

Dimensions

Length
12.9 in
Width
6 3/16 in
Height
6 3/8 in
Discharge Pipe Size
1/2 in
Intake Pipe Size
1 in
Manufacturers Warranty Length
5 yr
Overall Width
6.2 in
Overall Length
12.9 in
Overall Height
6.4 in
Inlet Diameter
1 in
Discharge Diameter
1/2 in
Impeller Diameter
3 in
Motor Frame Size
63
Wire Rope Length
12.9 in

Details

Item
Magnetic Drive Pump
HP
1/4 hp
Voltage
115
Inlet
1 in FNPT
Outlet
1/2 in MNPT
Max. Head
35 ft
Operating Pressure
14.2 psi
Housing Material
PVDF
Max. Specific Gravity
1.2
Impeller Material
PVDF
GPM of Water @ 3 Ft. of Head
19.5 gpm
Design
Centrifugal
Full Load Amps
2.4 A
GPM of Water @ 18 Ft. of Head
14.5 gpm
GPM of Water @ 15 Ft. of Head
16 gpm
Bearing Type
Radial, Thrust
GPM of Water @ 6 Ft. of Head
19.5 gpm
GPM of Water @ 24 Ft. of Head
12.5 gpm
Motor Type
Permanent Split Capacitor
Mounting
Close Coupled
Gasket Material
FKM
Application
Acids, DI-Water, Plating Solutions, Sodium Hypochlorite
Motor Enclosure
Totally Enclosed Fan Cooled
Series
DB5
GPM of Water @ 9 Ft. of Head
18.5 gpm
Max. Viscosity
50 CPS
Nameplate Voltage
115V AC
Specific Gravity (Maximum)
1.8
Flow Rate @ 18 ft of Head (Maximum)
14.5 gpm
Flow Rate @ 3 ft of Head (Maximum)
19.5 gpm
Motor Mounting Type
Horizontal
Viscosity (Maximum)
150 cps
Full Load Current
2.4 A
Chemical Compatibility
Horsepower (Maximum)
1/4 hp
Feet of Head (Maximum)
35 ft
Flow Rate @ 6 ft of Head (Maximum)
19.5 gpm
Phase
Single
Priming
Manual
Flow Rate @ 15 ft of Head (Maximum)
16 gpm
Flow Rate @ 24 ft of Head (Maximum)
12.5 gpm
Operating Pressure (Maximum)
14.2 psi
Discharge Pipe Type
MNPT
Intake Pipe Type
FNPT
Mounting Orientation
Horizontal
Media Temperature (Maximum)
220 Degrees F
Flow Rate @ 9 ft of Head (Maximum)
18.5 gpm
Motor Speed (Maximum)
3,450 RPM
Number of Stages
1
Flow Rate (Maximum)
19.5 gpm
Pump Mounting Style
Base-Mounted, Foot-Mounted
Ambient Temperature - Maximum
220 Degrees F
Best Efficiency Head
28 ft
Media Temperature - Maximum
220 Degrees F
Case Pressure - Maximum
60 psi
Ambient Temperature - Minimum
-20 Degrees F
Shaft Seal Type
Sealless
Hazardous Location Class
Not Rated
Pump Drive Configuration
Close-Coupled
Drive Coupling Type
Magnetic Coupling
Media Temperature - Minimum
35 Degrees F
Pumping Application
Chemical Transfer, Liquid Transfer
Motor Design
Permanent Split Capacitor
Pump Design
End Suction
Shut Off Pressure - Maximum
15.1 psi
Discharge Rotation Increments
0 Degrees
Best Efficiency Flow
9 gpm

Description

Magnetic Drive Pump

Restrictions

Hazardous material
