Shop LITTLE GIANT PUMP

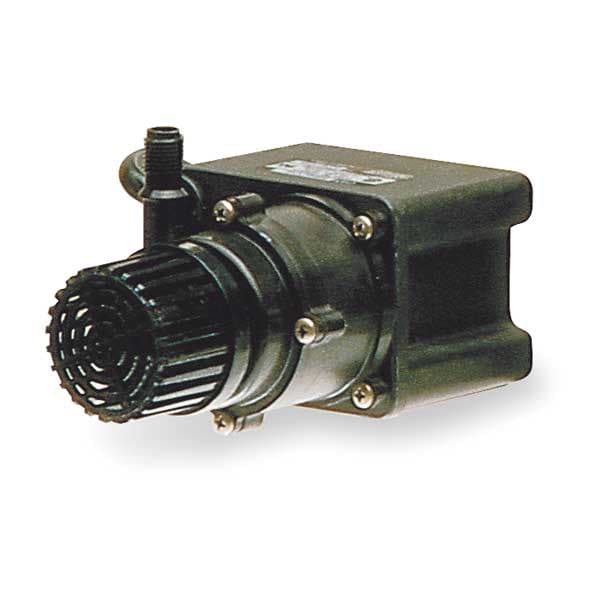

1/35 HP PPS Submersible Magnetic Drive Pump 115V 1/2" MPT

  • Mfr # 589204

  • Zoro # G2769374

product price:
$
240.99
/ea
Free Shipping & Returns

Key Features

HP
1/35 hp
Voltage
115
Inlet
1/2 in MPT
Outlet
1/4 in MPT
Max. Head
12.8 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
589204
Zoro #
G2769374
UPC #
010121899032
Country of Origin
Mexico

Dimensions

Length
7 1/2 in
Width
4 1/8 in
Cord Length
6 ft
Height
3 3/4 in
Overall Height
3.8 in
Overall Width
4 in
Overall Length
7.5 in
Manufacturers Warranty Length
1 yr
Intake Pipe Size
1/2 in
Discharge Pipe Size
1/4 in
Inlet Diameter
1/2 in
Discharge Diameter
1/4 in

Details

Item
Magnetic Drive Pump
HP
1/35 hp
Voltage
115
Inlet
1/2 in MPT
Outlet
1/4 in MPT
Max. Head
12.8 ft
Operating Pressure
5.5 psi
Housing Material
Glass-Filled Polypropylene
Bearing Type
Thrust
Motor Enclosure
Totally Enclosed Fan Cooled
Impeller Material
Polypropylene
Gasket Material
Buna-N
Temp. @ 30 psig
70 Degrees F
GPM of Water @ 3 Ft. of Head
5 gpm
Series
MD-SC
GPM of Water @ 6 Ft. of Head
4.1 gpm
Application
For Mild Chemicals at Moderate Temperature, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
Design
Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Mounting
Horizontal
Cord Type
3-conductor SJP
Max. Specific Gravity
1.1
Full Load Amps
0.9 A
Temp. @ 10 psig
120 Degrees F
Temp. @ 0 psig
150 Degrees F
Max. Viscosity
100 SSU
GPM of Water @ 9 Ft. of Head
2.7 gpm
Temp. @ 20 psig
90 Degrees F
Flow Rate @ 9 ft of Head (Maximum)
2.7 gpm
Ambient Temperature (Maximum)
77 Degrees F
Horsepower (Maximum)
1/35 hp
Motor Mounting Type
Horizontal
Feet of Head (Maximum)
12.8 ft
Specific Gravity (Maximum)
1.1
Media Temperature (Maximum)
150 Degrees F
Discharge Pipe Type
NPT
Flow Rate @ 6 ft of Head (Maximum)
4 gpm
Frequency
60 Hz
Intake Pipe Type
MNPT
Flow Rate @ 3 ft of Head (Maximum)
5 gpm
Operating Pressure (Maximum)
5.5 psi
Phase
Single
Viscosity (Maximum)
100 SUS
Full Load Current
0.9 A
Nameplate Voltage
115V AC
Drive Coupling Type
Magnetic Coupling
Flow Rate (Maximum)
5.5 gpm
Chemical Compatibility
Best Efficiency Flow
3 gpm
Mounting Orientation
Horizontal
Best Efficiency Head
9 ft
Motor Design
Permanent Split Capacitor
Media Temperature - Minimum
32 Degrees F
Shut Off Pressure - Maximum
5.5 psi
Inlet Standard
MNPT
Pumping Application
Coolant Recirculating, Liquid Transfer, Water Circulation
Number of Stages
1
Pump Design
Submersible
Ambient Temperature - Minimum
32 Degrees F
Ambient Temperature - Maximum
77 Degrees F
Motor Sealing
Oil-Filled
Media Temperature - Maximum
150 Degrees F

Description

Magnetic Drive Pump, Flow @ Total Head 5.4 GPM, Power Rating 1/35 HP, Current Rating 0.9 Amp, Voltage @ 60 Hz 115 Volts, Outlet 1/4 MPT Inch, Inlet 1/2 MPT Inch, Pressure 5.5 PSI, Maximum Head 12.8 Feet, Motor Enclosure Sub, Water Flow @ 3 Feet of Head 5 GPM, Water Flow @ 6 Feet of Head 3.9 GPM, Water Flow @ 9 Feet of Head 2.7 GPM, Height 3 3/4 Inches, Length 9 Inches, Width 7 1/4 Inches, Series MD-SC

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
